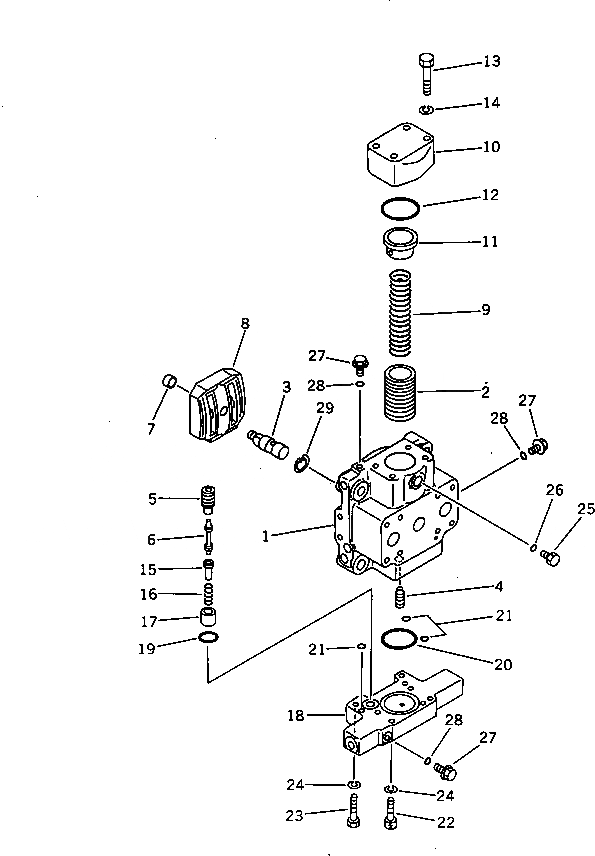

Запчасти Komatsu PC650-3 МОТОР ХОДА () (/) (КРОМЕ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-87-01011

TRAVEL MOTOR ASS'Y

|$1

706-87-01010

TRAVEL MOTOR ASS'Y

|$3

706-87-03105

MOTOR ASS'Y

|$4

706-87-03104

MOTOR ASS'Y

|$5

706-87-00010

END COVER SUB ASS'Y

|$6

706-87-00110

END COVER SUB A.

1

COVER

2

PISTON

3

PIN

4

SCREW

5

SLEEVE

6

SPOOL

7

706-77-42071

BUSHING

8

706-87-40845

PLATE

9

706-87-50260

SPRING

10

706-87-50211

COVER

11

706-87-50471

RETAINER

12

07000-12075

O-RING

13

01010-51475

BOLT

14

01602-21442

WASHER,SPRING

15

706-87-50311

RETAINER

16

706-87-50460

SPRING

17

706-87-50430

SPACER

18

706-87-50271

PLATE

19

07000-03030

O-RING

20

07000-02070

O-RING

21

07000-12012

O-RING

22

706-86-51210

BOLT

23

01010-51260

BOLT

24

01602-21236

WASHER,SPRING

25

706-75-71420

PLUG

26

07002-10823

O-RING

27

706-73-71450

PLUG

28

07002-11423

O-RING

29

04065-02812

RING,SNAP
