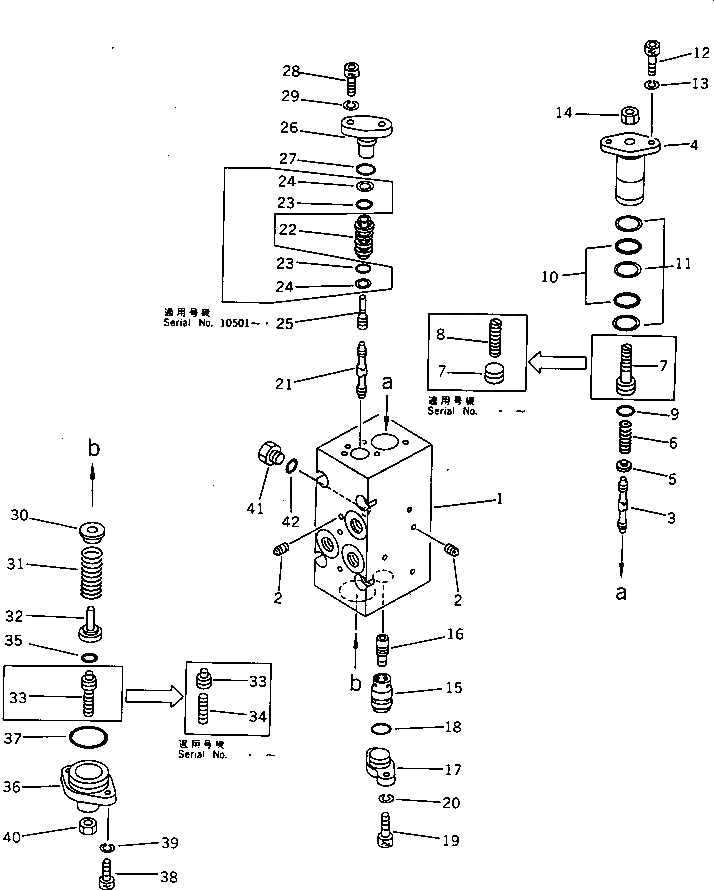

Запчасти Komatsu PC650-3 HYDROULIC НАСОС¤ ПОВОРОТН. (CO И NC КЛАПАН) (7/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-17-01031

PUMP ASS'Y

|$1

708-17-01030

PUMP ASS'Y (HPV 160)

|$2

708-17-10100

PUMP ASS'Y (HPV 160)

|$4

708-17-15100

SERVO VALVE ASS'Y

|$6

708-17-17100

VALVE ASS'Y,CO AND NC

|$7

708-23-00310

BODY ASS'Y

1

BODY

1

BODY

2

EXPANDER

2

EXPANDER

3

SPOOL

3

SPOOL

4

708-25-17131

COVER

5

708-25-17180

SEAT

6

708-25-17190

SPRING

7

708-25-17420

PLUG

7

4708-25-17122

PLUG

8

708-25-17430

SCREW

9

07000-02012

O-RING

10

07000-12021

O-RING

11

07001-02021

RING,BACK-UP

12

708-25-15320

BOLT

13

01602-20619

WASHER,SPRING

14

01580-10806

NUT

15

708-25-17150

SLEEVE

16

708-25-17160

PISTON

17

708-25-17170

COVER

18

07000-02014

O-RING

19

708-25-15320

BOLT

20

01602-20619

WASHER,SPRING

21

SPOOL

21

SPOOL

22

SLEEVE

22

SLEEVE

23

07000-52012

O-RING

24

07001-02012

RING,BACK-UP

25

708-25-17220

PISTON

26

708-25-17230

COVER

27

07000-02012

O-RING

28

708-25-15320

BOLT

29

01602-20619

WASHER,SPRING

30

708-25-17370

SEAT

31

708-25-17250

SPRING

32

708-25-17260

SEAT

33

708-25-17410

PLUG

33

708-25-17290

PLUG

34

708-25-15340

SCREW

35

07000-01009

O-RING

36

708-25-17350

COVER

37

07000-03028

O-RING

38

708-25-15320

BOLT

39

01602-20619

WASHER,SPRING

40

01580-10806

NUT

41

07040-11007

PLUG

42

07002-01023

O-RING
