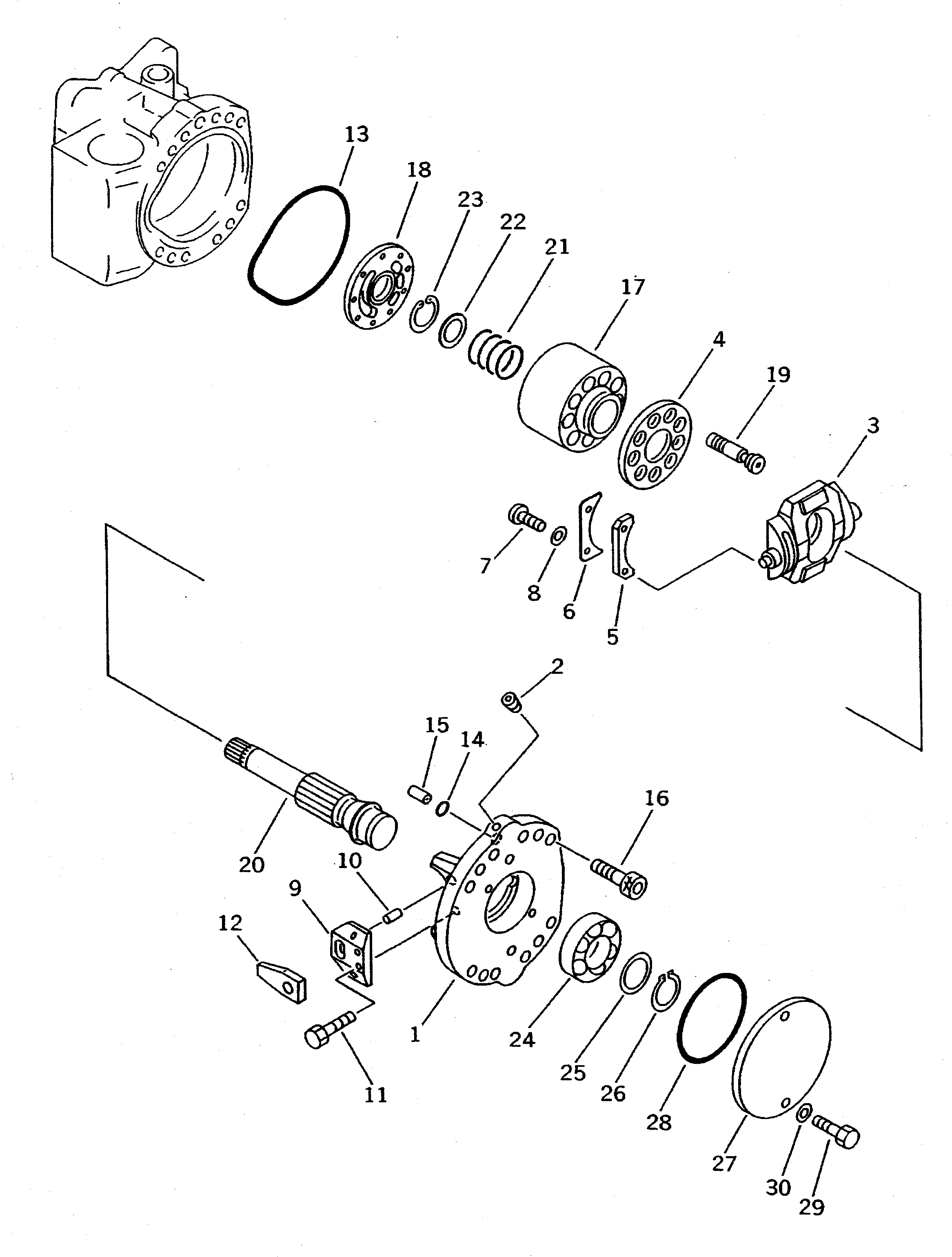

Запчасти Komatsu PC650-3 ГИДР. НАСОС.¤ NO. (НАСОС /) (/8) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-25-50201

HYDRAULIC PUMP ASS'Y

|$1

708-25-50200

HYDRAULIC PUMP ASS'Y (HPV 90+90

|$3

708-25-04180

PUMP SUB ASS'Y

|$4

708-25-51201

PUMP SUB ASS'Y

|$6

708-25-00041

CRADLE ASS'Y,REAR

|$7

4708-25-00040

CRADLE ASS'Y,REAR

|$9

708-25-00490

CRADLE SUB ASS'Y,REAR

1

CRADLE,REAR

2

PLUG

3

708-25-13411

CAM,ROCKER

3

4708-25-13410

CAM,ROCKER

4

708-25-13422

RETAINER,SHOE

5

708-25-05061

SPACER KIT

5

SPACER, 11.540MM

5

SPACER, 11.560MM

5

SPACER, 11.575MM

6

708-25-13441

RETAINER

7

708-25-13470

SCREW

8

01643-30623

WASHER

9

708-25-12360

PLATE

10

04020-00820

PIN,DOWEL

11

01010-50816

BOLT

11

01010-30816

BOLT

12

708-25-14121

SLIDER

12

4708-25-14120

SLIDER

13

708-25-12340

O-RING

14

07000-12015

O-RING

15

708-25-12330

JOINT

16

708-25-12350

BOLT

|$34

708-25-00411

CYLINDER BLOCK ASS'Y,REAR

|$35

708-25-00020

BLOCK ASS'Y,REAR

17

708-25-13151

BLOCK

18

708-25-13621

PLATE,REAR

18

708-25-13220

PLATE,REAR

19

708-25-13312

PISTON SUB ASS'Y

19

708-25-13311

PISTON SUB ASS'Y

20

708-25-52721

SHAFT,REAR

21

708-25-13130

SPRING

22

708-25-13120

WASHER

23

708-25-13140

RING,SNAP

24

708-25-12731

BEARING

25

708-25-05010

WASHER KIT

25

WASHER, 2.0MM

25

WASHER, 2.1MM

25

WASHER, 2.2MM

26

708-25-12790

RING,SNAP

27

708-45-19990

COVER

28

07000-02120

O-RING

29

01010-51230

BOLT

29

01010-31230

BOLT

30

01643-31232

WASHER
