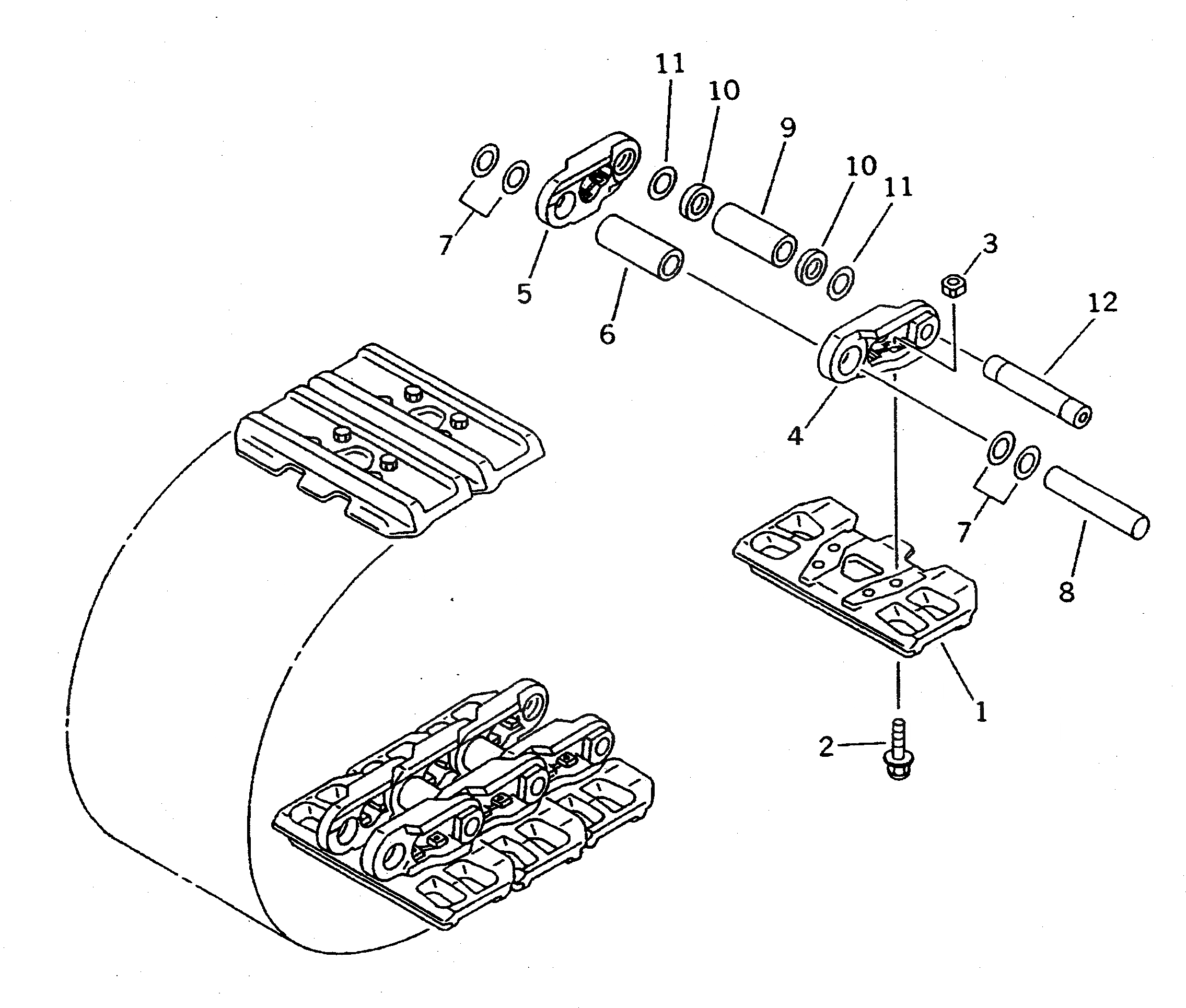

Запчасти Komatsu PC650-3 ГУСЕНИЦЫ (ДЛЯ ПОГРУЗ.)(№7-) ХОДОВАЯ

|$1

209-32-01506

TRACK SHOE ASS'Y

|$2

209-32-01505

TRACK SHOE ASS'Y

1

209-32-11115

SHOE,TRACK

2

209-32-11234

BOLT, SHOE (KIT)

2

209-32-11233

BOLT, SHOE (KIT)

3

195-32-11222

NUT, SHOE (KIT)

3

195-32-11221

NUT, SHOE (KIT)

|$8

209-32-00022

TRACK LINK ASS'Y

4

195-32-11127

LINK,TRACK, L.H.

5

195-32-11137

LINK,TRACK, R.H.

6

195-32-22141

BUSHING,REGULAR

7

195-32-22221

WASHER

8

195-32-22151

PIN,REGULAR

9

195-32-22170

BUSHING,MASTER

10

195-32-22231

SPACER

11

195-32-22221

WASHER

12

209-32-11191

PIN, MASTER

1

209-32-01605

TRACK SHOE ASS'Y

1

209-32-01604

TRACK SHOE ASS'Y

1

209-32-11213

SHOE,TRACK

2

209-32-11234

BOLT, SHOE (KIT)

2

209-32-11233

BOLT, SHOE (KIT)

3

195-32-11222

NUT, SHOE (KIT)

3

195-32-11221

NUT, SHOE (KIT)

4

209-32-00022

TRACK LINK ASS'Y

1

209-32-05022

SHOE BOLT AND NUT K.

1

209-32-05021

SHOE BOLT AND NUT K.

1

209-32-11234

BOLT, SHOE

1

209-32-11233

BOLT, SHOE

2

195-32-11222

NUT, SHOE

2

195-32-11221

NUT, SHOE

6

195-98-09311

BUSHING,REGULAR

8

195-98-09211

PIN,REGULAR

9

195-98-09340

BUSHING,MASTER

12

209-98-09041

PIN,MASTER

6

195-98-09331

BUSHING,REGULAR

8

195-98-09231

PIN,REGULAR

9

195-98-09360

BUSHING,MASTER

12

209-98-09051

PIN,MASTER

|$1

209-32-01506

TRACK SHOE ASS'Y

|$2

209-32-01505

TRACK SHOE ASS'Y

1

209-32-11115

SHOE,TRACK

2

209-32-11234

BOLT, SHOE (KIT)

2

209-32-11233

BOLT, SHOE (KIT)

3

195-32-11222

NUT, SHOE (KIT)

3

195-32-11221

NUT, SHOE (KIT)

|$8

209-32-00022

TRACK LINK ASS'Y

4

195-32-11127

LINK,TRACK, L.H.

5

195-32-11137

LINK,TRACK, R.H.

6

195-32-22141

BUSHING,REGULAR

7

195-32-22221

WASHER

8

195-32-22151

PIN,REGULAR

9

195-32-22170

BUSHING,MASTER

10

195-32-22231

SPACER

11

195-32-22221

WASHER

12

209-32-11191

PIN, MASTER

1

209-32-01605

TRACK SHOE ASS'Y

1

209-32-01604

TRACK SHOE ASS'Y

1

209-32-11213

SHOE,TRACK

2

209-32-11234

BOLT, SHOE (KIT)

2

209-32-11233

BOLT, SHOE (KIT)

3

195-32-11222

NUT, SHOE (KIT)

3

195-32-11221

NUT, SHOE (KIT)

4

209-32-00022

TRACK LINK ASS'Y

1

209-32-05022

SHOE BOLT AND NUT K.

1

209-32-05021

SHOE BOLT AND NUT K.

1

209-32-11234

BOLT, SHOE

1

209-32-11233

BOLT, SHOE

2

195-32-11222

NUT, SHOE

2

195-32-11221

NUT, SHOE

6

195-98-09311

BUSHING,REGULAR

8

195-98-09211

PIN,REGULAR

9

195-98-09340

BUSHING,MASTER

12

209-98-09041

PIN,MASTER

6

195-98-09331

BUSHING,REGULAR

8

195-98-09231

PIN,REGULAR

9

195-98-09360

BUSHING,MASTER

12

209-98-09051

PIN,MASTER
