Запчасти Komatsu PC650-3 ГУСЕНИЦЫ (ДЛЯ ЭКСКАВАТ.)(№-7) ХОДОВАЯ

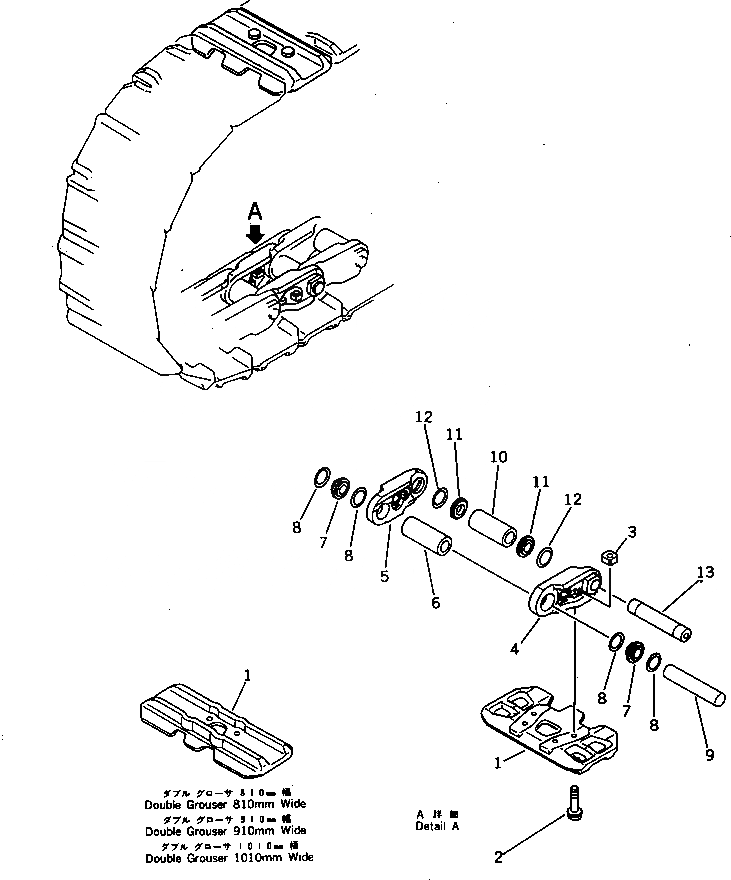

Схема запчастей Komatsu PC650-3 - ГУСЕНИЦЫ (ДЛЯ ЭКСКАВАТ.)(№-7) ХОДОВАЯ

Артикул

Название

Примечание

Количество

|1

209-32-01505

TRACK SHOE ASS'Y

|1

209-32-01504

TRACK SHOE ASS'Y

|1

209-32-01503

TRACK SHOE ASS'Y

1

209-32-11115

SHOE,TRACK

|1

209-32-11114

SHOE,TRACK

2

209-32-11233

BOLT¤ SHOE (KIT)

|2

209-32-11231

BOLT¤ SHOE (KIT)

3

195-32-11221

NUT¤ SHOE (KIT)

|4

209-32-00022

TRACK LINK ASS'Y

|4

209-32-00021

TRACK LINK ASS'Y

4

195-32-11127

LINK,TRACK¤ L.H.

5

195-32-11137

LINK,TRACK¤ R.H.

6

195-32-22140

BUSHING,REGULAR

7

195-32-22210

SPACER

8

195-32-22220

WASHER

9

195-32-22151

PIN,REGULAR

10

195-32-22170

BUSHING,MASTER

11

195-32-22230

SPACER

12

195-32-22220

WASHER

13

195-32-22191

PIN,MASTER

|1

209-32-01604

TRACK SHOE ASS'Y

|1

209-32-01603

TRACK SHOE ASS'Y

|1

209-32-01602

TRACK SHOE ASS'Y

1

209-32-11213

SHOE,TRACK

|1

209-32-11212

SHOE,TRACK

2

209-32-11233

BOLT¤ SHOE (KIT)

|2

209-32-11231

BOLT¤ SHOE (KIT)

3

195-32-11221

NUT¤ SHOE (KIT)

|4

209-32-00022

TRACK LINK ASS'Y

|4

209-32-00021

TRACK LINK ASS'Y

|1

209-32-01532

TRACK SHOE ASS'Y

|1

209-32-01531

TRACK SHOE ASS'Y

|1

209-32-01530

TRACK SHOE ASS'Y

1

209-32-11311

SHOE,TRACK

|1

209-32-11310

SHOE,TRACK

2

209-32-11233

BOLT¤ SHOE (KIT)

|2

209-32-11231

BOLT¤ SHOE (KIT)

3

195-32-11221

NUT¤ SHOE (KIT)

|4

209-32-00022

TRACK LINK ASS'Y

|4

209-32-00021

TRACK LINK ASS'Y

|1

209-32-01562

TRACK SHOE ASS'Y

|1

209-32-01561

TRACK SHOE ASS'Y

|1

209-32-01560

TRACK SHOE ASS'Y

1

209-32-11411

SHOE,TRACK

|1

209-32-11410

SHOE,TRACK

2

209-32-11233

BOLT¤ SHOE (KIT)

|2

209-32-11231

BOLT¤ SHOE (KIT)

3

195-32-11221

NUT¤ SHOE (KIT)

|4

209-32-00022

TRACK LINK ASS'Y

|4

209-32-00021

TRACK LINK ASS'Y

|1

209-32-05021

SHOE BOLT AND NUT K.

|1

209-32-05020

SHOE BOLT AND NUT K.

1

209-32-11233

BOLT¤ SHOE

|1

209-32-11231

BOLT¤ SHOE

2

195-32-11221

NUT¤ SHOE

6

195-98-09310

BUSHING,REGULAR

9

195-98-09211

PIN,REGULAR

10

195-98-09340

BUSHING,MASTER

13

195-98-09241

PIN,MASTER

6

195-98-09330

BUSHING,REGULAR

9

195-98-09231

PIN,REGULAR

10

195-98-09360

BUSHING,MASTER

13

195-98-09261

PIN,MASTER

Выбрано товаров: 63
