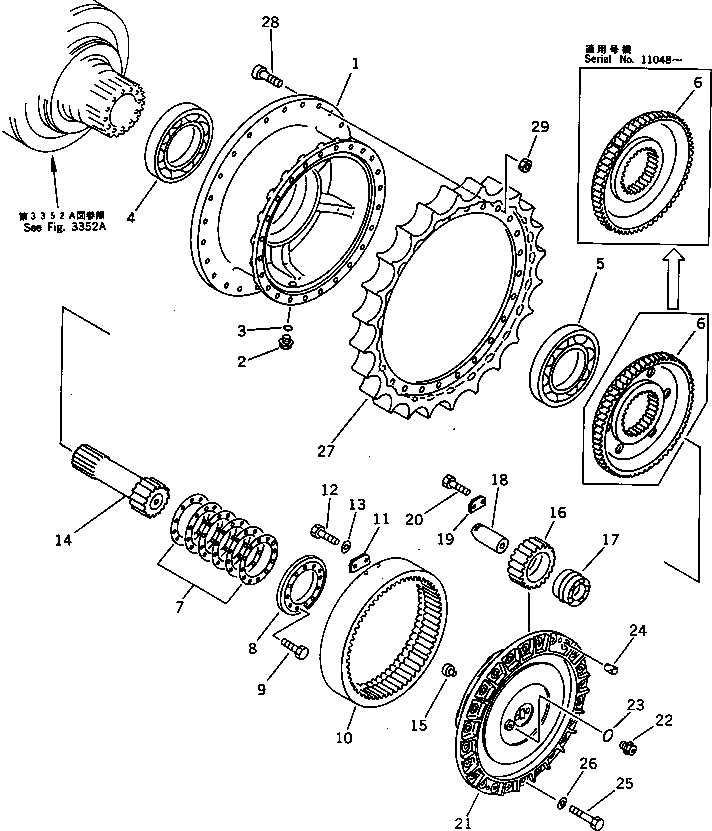

Запчасти Komatsu PC650-3 КОРПУС КОНЕЧН. ПЕРЕДАЧИ И ЗВЕЗДОЧКА (/) (ДЛЯ ЯПОН.)(№-) ХОДОВАЯ

|1

209-27-00121

FINAL DRIVE ASS'Y

|1

209-27-00120

FINAL DRIVE ASS'Y

1

209-27-51150

CASE

2

07044-13620

PLUG

3

07002-03634

O-RING

4

209-27-51410

BEARING,ROLLER

5

209-27-11640

BEARING,ROLLER

6

209-27-51320

HOUSING

7

209-27-00080

SHIM ASS'Y

|7

SHIM¤ 0.15MM

|7

SHIM¤ 0.2MM

|7

SHIM¤ 0.5MM

|7

SHIM¤ 1.0MM

8

209-27-51331

RETAINER

9

01010-51650

BOLT

10

209-27-51310

GEAR

11

209-27-21270

LOCK

12

01010-51230

BOLT

13

01643-31232

WASHER

14

209-27-51280

SHAFT

15

205-27-71360

BUTTON

16

209-27-51290

GEAR

17

209-27-51390

BEARING,ROLLER

18

209-27-51440

PIN

19

209-27-51450

LOCK

20

01010-51230

BOLT

21

209-27-51161

CARRIER

22

07040-13618

PLUG

23

07002-03634

O-RING

24

07049-02430

PLUG,WOOD

25

01010-52465

BOLT

26

01643-32460

WASHER

27

209-27-51170

TEETH

28

195-27-31640

BOLT

29

01803-02430

NUT
