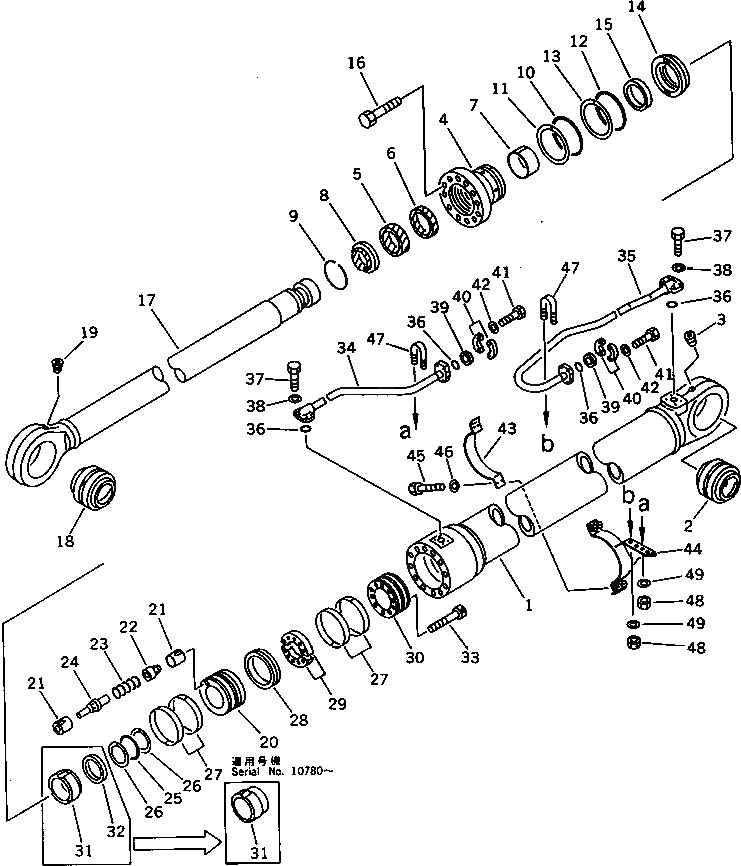

Запчасти Komatsu PC650-3 ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
G-1
209-63-X2011
BOOM CYLINDER GROUP,L.H.
G-1
209-63-X2010
BOOM CYLINDER GROUP,L.H.
G-1
209-63-X2021
BOOM CYLINDER GROUP,R.H.
G-1
209-63-X2020
BOOM CYLINDER GROUP,R.H.
|1
209-63-02011
CYLINDER ASS'Y
|1
209-63-02010
CYLINDER ASS'Y
1
209-63-52540
CYLINDER
2
707-46-13010
BUSHING
3
07043-00108
PLUG
4
707-28-20510
HEAD,CYLINDER
5
707-51-14130
PACKING,ROD (KIT)
6
707-51-14630
RING,BUFFER (KIT)
7
707-52-91150
BUSHING
|7
707-52-11410
BUSHING
8
198-63-93170
SEAL,DUST (KIT)
9
07179-14160
RING,SNAP
|9
707-75-14012
RING,SNAP
10
07000-15195
O-RING (KIT)
11
707-35-92050
RING,BACK-UP (KIT)
12
07000-15195
O-RING (KIT)
13
07001-05195
RING,BACK-UP (KIT)
14
707-71-31460
COLLAR
15
707-71-11450
RING
16
01010-52790
BOLT
17
209-63-52520
ROD,PISTON
18
707-46-11520
BUSHING
19
07043-00108
PLUG
|20
707-91-02062
PISTON ASS'Y
|20
707-91-02061
PISTON ASS'Y
20
PISTON
|20
PISTON
21
SEAT,VALVE
22
VALVE
23
SPRING
24
VALVE,PISTON
|24
VALVE,PISTON
25
07000-12115
O-RING (KIT)
26
707-35-52860
RING,BACK-UP (KIT)
27
707-39-20820
RING,WEAR (KIT)
28
707-44-20180
RING,PISTON (KIT)
|28
707-44-20080
RING,PISTON (KIT)
29
707-40-20970
SPACER
30
707-37-20020
PISTON
31
707-71-51461
PLUNGER
|31
707-71-51460
PLUNGER
32
707-40-20910
RETAINER
33
01252-31490
BOLT
34
209-63-52570
TUBE,L.H.
|34
209-63-52670
TUBE,R.H.
35
209-62-58180
TUBE,L.H.
|35
209-62-58190
TUBE,R.H.
36
07000-13038
O-RING (KIT)
37
01010-51245
BOLT
38
01643-31232
WASHER
39
07378-11210
HEAD,SLEEVE
40
07371-51260
FLANGE,SPLIT
41
01010-51245
BOLT
42
01643-31232
WASHER
43
707-88-96110
BAND
44
707-88-96120
BRACKET
45
01010-51240
BOLT
46
01643-31232
WASHER
47
07283-23442
CLIP
48
01599-01011
NUT
49
01643-31032
WASHER
Выбрано товаров: 65
