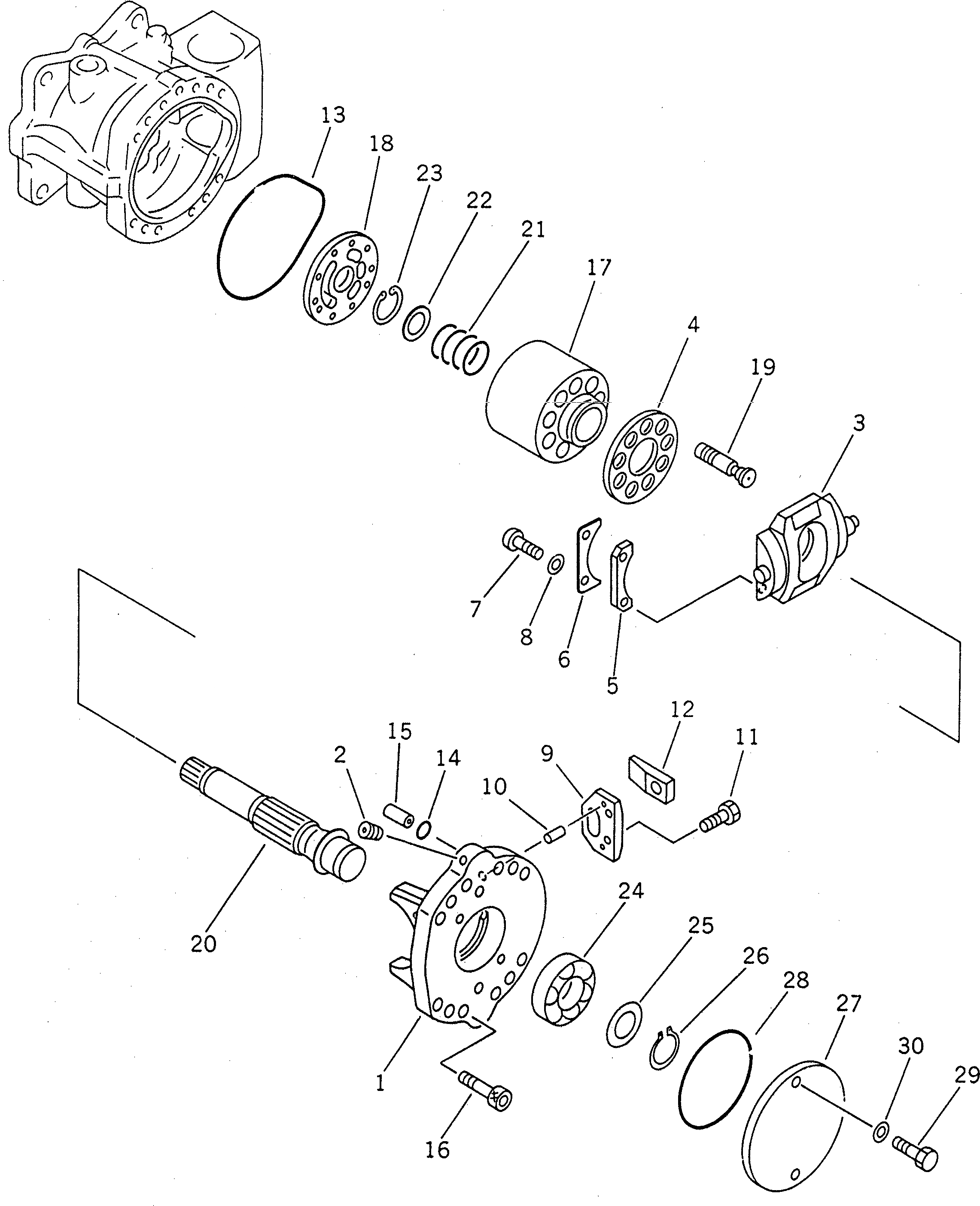

Запчасти Komatsu PC650-3 ГИДР. НАСОС.¤ NO. (НАСОС /) (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-01011

PUMP ASS'Y

|1

708-25-01010

PUMP ASS'Y

|1

708-25-50101

HYDRAULIC PUMP ASS'Y,(HPV 90+90)

|1

708-25-04170

PUMP SUB ASS'Y

|1

708-25-51101

PUMP SUB ASS'Y

|1

708-25-00281

CRADLE ASS'Y,REAR

|1

4708-25-00280

CRADLE ASS'Y,REAR

|1

708-25-00600

CRADLE SUB ASS'Y,REAR

1

CRADLE,REAR

2

PLUG

3

708-25-23411

CAM,CAM

|3

4708-25-23410

ROCKER,CAM

4

708-25-13422

RETAINER,SHOE

5

708-25-05061

SPACER KIT

|5

SPACER¤ 11.540MM

|5

SPACER¤ 11.560MM

|5

SPACER¤ 11.575MM

6

708-25-13441

RETAINER

7

708-25-13470

SCREW

8

01643-30623

WASHER

9

708-25-12360

PLATE

10

04020-00820

PIN,DOWEL

11

01010-50816

BOLT

|11

01010-30816

BOLT

12

708-25-14121

SLIDER

|12

4708-25-14120

SLIDER

13

708-25-12340

O-RING

14

07000-12015

O-RING

15

708-25-12330

JOINT

16

708-25-12350

BOLT

|17

708-25-00411

CYLINDER BLOCK ASS'Y,REAR

|17

708-25-00020

BLOCK ASS'Y,REAR

17

708-25-13151

BLOCK,CYLINDER

18

708-25-13621

PLATE

|18

708-25-13220

PLATE

19

708-25-13312

PISTON SUB ASS'Y

|19

708-25-13311

PISTON SUB ASS'Y

20

708-25-52721

SHAFT,REAR

21

708-25-13130

SPRING

22

708-25-13120

WASHER

23

708-25-13140

RING,SNAP

24

708-25-12731

BEARING

25

708-25-05010

WASHER KIT

|25

WASHER¤ 2.0MM

|25

WASHER¤ 2.1MM

|25

WASHER¤ 2.2MM

26

708-25-12790

RING,SNAP

27

708-45-19990

COVER

28

07000-02120

O-RING

29

01010-51230

BOLT

|29

01010-31230

BOLT

30

01643-31232

WASHER
