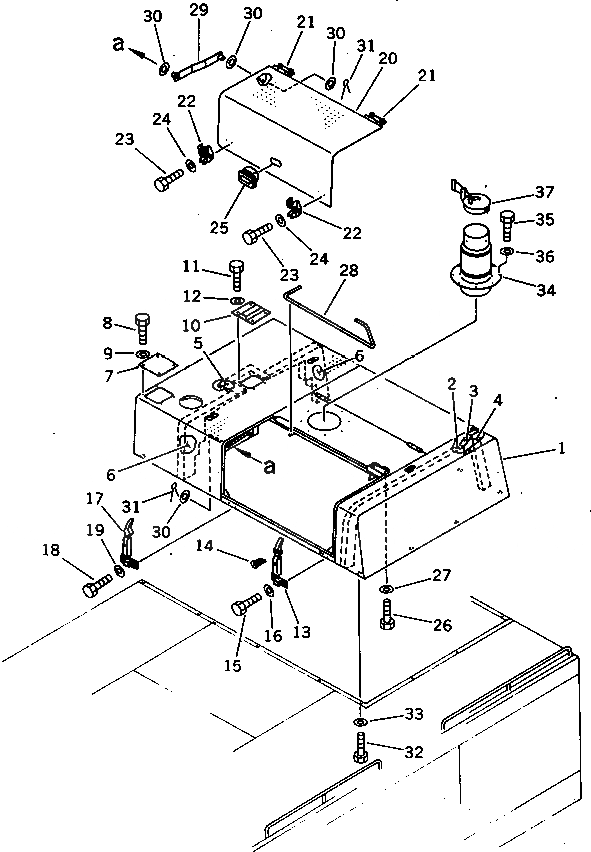

Запчасти Komatsu PC650-3 КАПОТ AND ВЫХЛОПНАЯ ТРУБА (ДЛЯ АНТИВАНДАЛЬН.) ЧАСТИ КОРПУСА

1

209-54-53112

HOOD

2

209-54-56180

SEAL

3

209-54-56190

SEAL

4

209-54-56210

SEAL

5

209-54-56441

SEAL

|5

209-54-56440

SEAL

6

209-54-56451

SEAL

|6

209-54-56450

SEAL

7

209-54-53140

COVER

8

01010-51230

BOLT

9

01643-31232

WASHER

10

209-54-53130

COVER

11

01010-51220

BOLT

|11

01010-51230

BOLT

12

01643-31232

WASHER

G-1

209-54-X4300

VANDALISM GROUP

13

205-54-76260

CATCHER

14

205-54-76280

ROTOR ASS'Y

15

01010-50825

BOLT

16

01643-30823

WASHER

17

205-54-76530

CATCHER

18

01010-50825

BOLT

19

01643-30823

WASHER

20

209-54-53121

COVER

21

205-54-64160

HINGE (WELDED)

22

205-54-67660

SUPPORT

23

01010-50825

BOLT

24

01643-30823

WASHER

25

209-54-12280

HANDLE

26

01010-51230

BOLT

27

01643-31232

WASHER

28

208-54-12210

BAR,TORSION

29

209-54-53151

STAY

30

01643-31645

WASHER

31

04050-14028

PIN,COTTER

32

01010-51230

BOLT

33

01643-31232

WASHER

34

6212-11-5562

PIPE,EXHAUST

|34

6212-11-5561

PIPE,EXHAUST

35

01010-51230

BOLT

36

01643-31232

WASHER

37

6164-12-5900

CAP,RAIN
