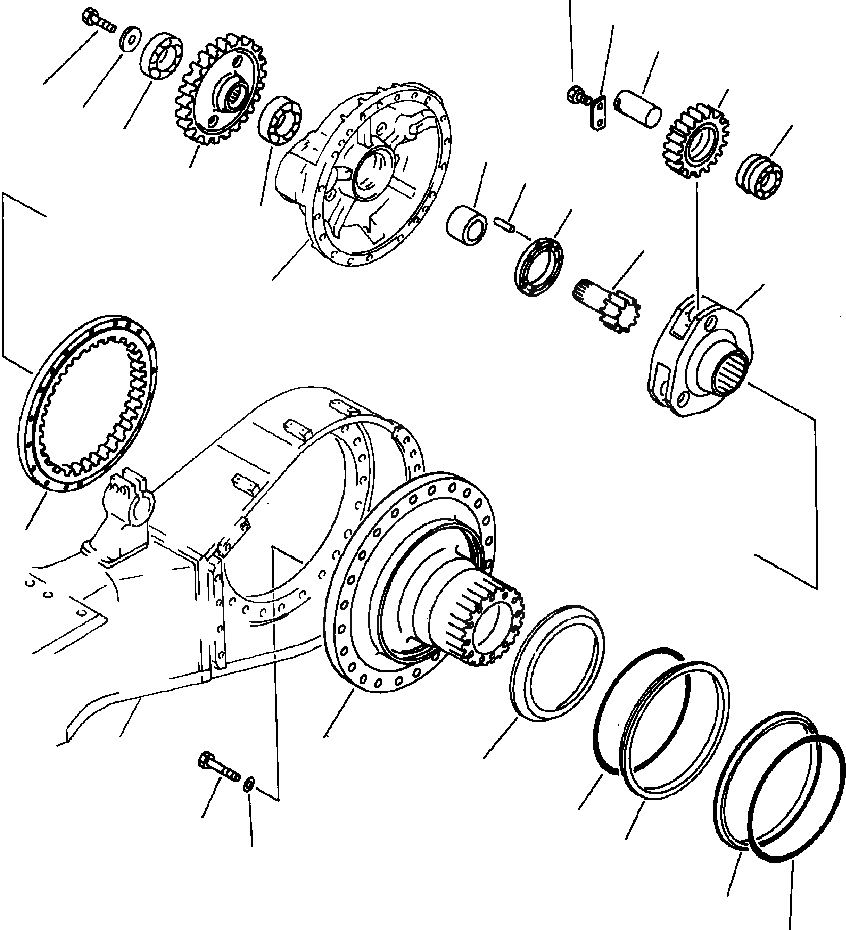

Запчасти Komatsu PC650-3 & PC650LC-3 КОНЕЧНАЯ ПЕРЕДАЧА - ВХОД PLANETARY PCLC- ХОД И НИЖН.CARRIAGE

|$0

209-27-00113

DRIVE ASSEMBLY, FINAL

1

209-27-51550

GEAR, INPUT

2

06044-00216

BEARING, ROLLER

3

209-27-51220

HOLDER

4

01010-51645

BOLT

5

209-27-51230

SPACER

6

04020-00616

PIN, DOWEL

7

209-27-51460

WASHER, THRUST

8

209-27-51241

SHAFT, PLANETARY INPUT

9

209-27-51270

CARRIER, PLANET

10

209-27-51250

GEAR, PLANET

11

209-27-51380

BEARING, ROLLER

12

209-27-51430

PIN

13

21T-26-11420

LOCK

14

01010-51220

BOLT

15

209-27-51262

GEAR, RING

16

209-27-51141

HOUSING

17

209-27-51420

SPACER

|$18

17M-27-00101

SEAL ASSEMBLY, FLOATING

18

17M-27-00110

RING ASSEMBLY, SEAL

19

421-33-00030

O-RING ASSEMBLY

22

01010-52480

BOLT

23

01643-32460

WASHER
