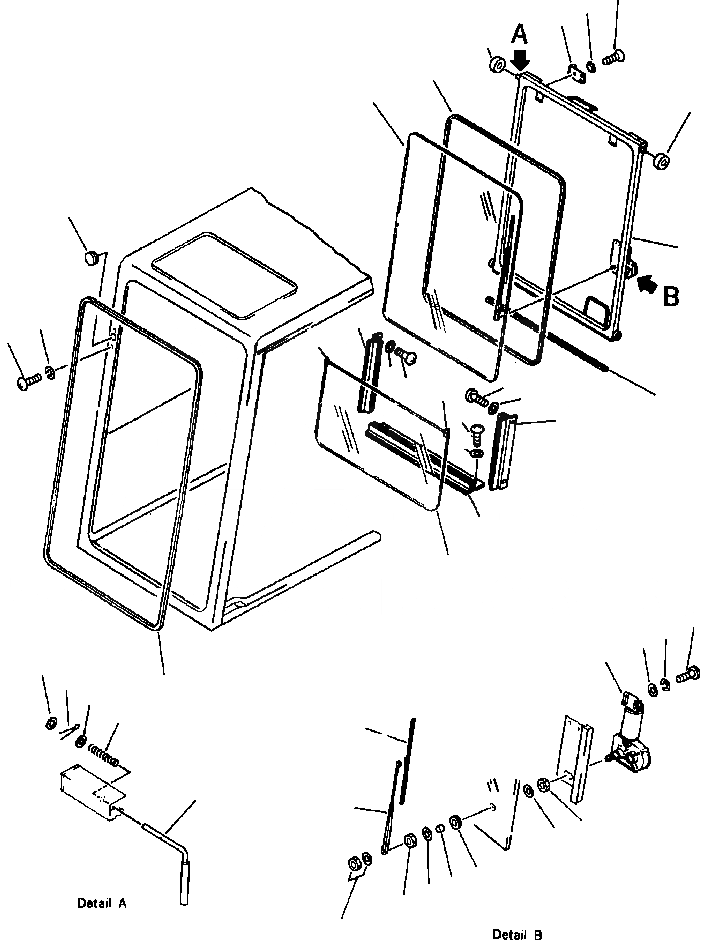

Запчасти Komatsu PC650-3 & PC650LC-3 КАБИНА WINDЗАЩИТН. & ДВОРНИКИ ЧАСТИ КОРПУСА

|$0

205-54-71002

CAB, OPERATOR'S

|$1

209-54-00040

WINDOW ASSEMBLY, FRONT

1

209-54-51130

WINDOW, FRONT

2

205-54-72650

PIN

3

205-54-66330

SPRING

4

01641-21016

WASHER

5

04050-13018

PIN, COTTER

6

205-54-71211

GLASS

7

205-54-71520

STRIP, WEATHER

8

205-54-71621

SEAL

9

205-54-72570

STRIKER

10

01224-40820

SCREW

11

205-54-71750

WASHER, LOCK

12

205-54-72590

ROLLER

13

205-06-71410

MOTOR ASSEMBLY, WIPER

14

01220-40516

SCREW

15

01601-20513

WASHER, SPRING

16

01641-20508

WASHER

17

205-06-62230

GROMMET

18

205-06-62270

WASHER

19

205-06-62240

COLLAR

20

205-06-62250

NUT

21

205-06-71420

ARM

22

205-06-62470

BLADE

23

205-54-71510

TRIM

24

205-54-76310

GLASS ASSEMBLY

25

205-54-72721

SEAL - L.H

26

205-54-72731

SEAL - R.H

27

205-54-73370

BRACKET

28

205-54-72623

BRACKET

29

01220-40616

SCREW

30

01643-30623

WASHER

31

09415-01610

CAP

32

01220-40412

SCREW

33

01601-20410

WASHER, SPRING
