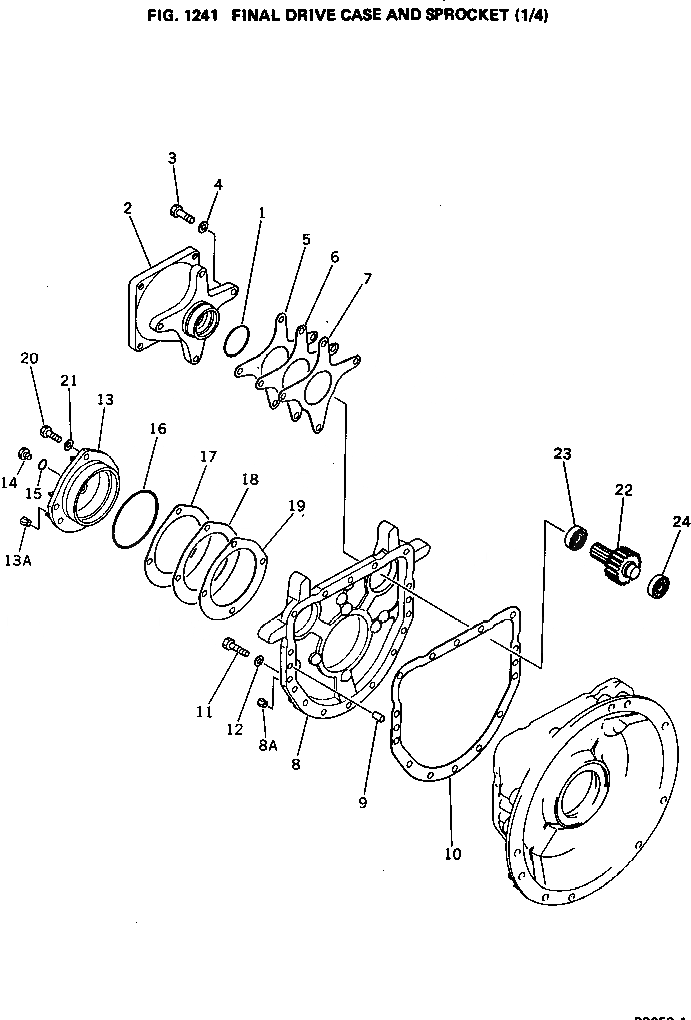

Запчасти Komatsu PC650-1 КОРПУС КОНЕЧН. ПЕРЕДАЧИ И ЗВЕЗДОЧКА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

209-27-00043

FINAL DRIVE ASS'Y

|$1

209-27-00042

FINAL DRIVE ASS'Y

|$2

209-27-00041

FINAL DRIVE ASS'Y

|$3

209-27-00040

FINAL DRIVE ASS'Y

1

07000-02100

O-RING

2

209-27-11111

CASE

3

01010-51650

BOLT

4

01643-31645

WASHER

|$8

209-27-00011

SHIM ASS'Y

|$9

209-27-00010

SHIM ASS'Y

5

SHIM, 0.1MM

5

SHIM, 0.1MM

6

SHIM, 0.15MM

7

SHIM, 0.5MM

8

209-27-11131

CASE

8A

07049-01620

PLUG

9

195-30-13340

PIN,DOWEL

10

209-27-21180

GASKET

11

01010-51645

BOLT

12

01643-31645

WASHER

13

209-27-11121

COVER

13A

07049-01620

PLUG

14

07040-11007

PLUG

15

07002-01023

O-RING

16

07000-05165

O-RING

|$25

209-27-00021

SHIM ASS'Y

|$26

209-27-00020

SHIM ASS'Y

17

SHIM, 0.1MM

17

SHIM, 0.1MM

18

SHIM, 0.15MM

19

SHIM, 0.5MM

20

01010-51640

BOLT

21

01643-31645

WASHER

22

209-27-11363

SHAFT

23

06002-32009

BEARING

24

06002-32007

BEARING
