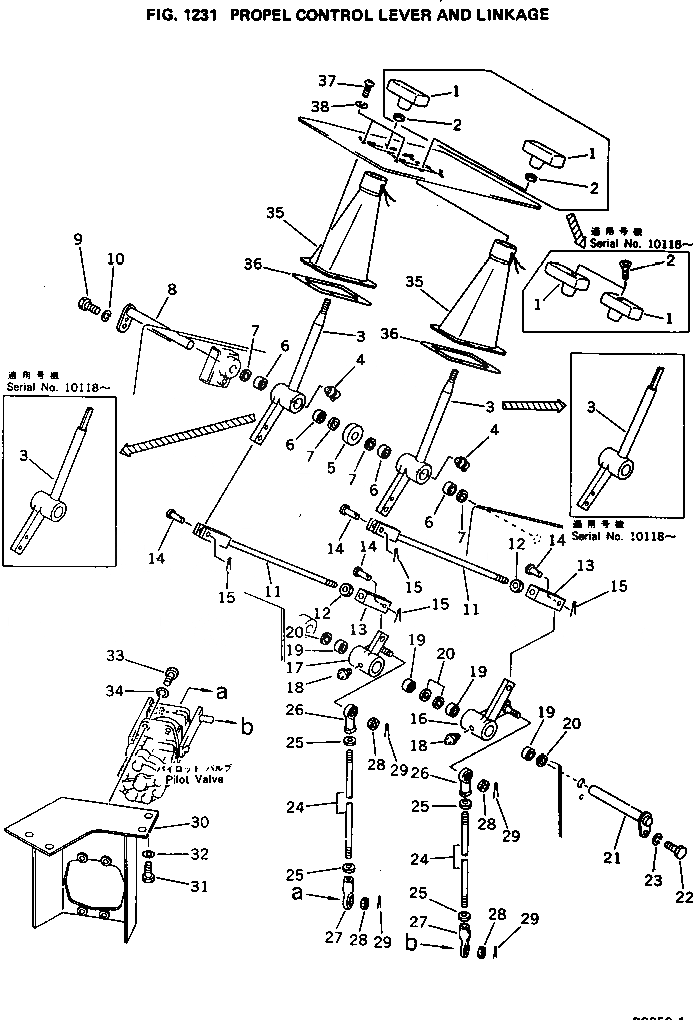

Запчасти Komatsu PC650-1 РЫЧАГ УПРАВЛ-Я ХОДОМ ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

1

205-43-63371

KNOB

1

21T-43-11760

KNOB

2

209-09-11130

BOLT

2

01580-10806

NUT

3

209-43-13312

LEVER

3

209-43-13311

LEVER

4

07020-00900

FITTING,GREASE

5

209-43-13330

COLLAR

6

06120-01612

BEARING

7

06122-01603

SEAL,BEARING

8

209-43-13320

PIN

9

01010-50820

BOLT

10

01602-20825

WASHER,SPRING

11

04244-41031

ROD

12

01582-11008

NUT

13

04211-21055

YOKE

14

04205-11028

PIN

15

04050-13015

PIN,COTTER

16

209-43-13341

LEVER

17

209-43-13351

LEVER

18

07020-00000

FITTING,GREASE

19

06120-01612

BEARING

20

06122-01603

SEAL,BEARING

21

209-43-13270

PIN

22

01010-50820

BOLT

23

01602-20825

WASHER,SPRING

24

04245-41036

ROD

25

01582-11008

NUT

26

04250-51056

END,ROD

27

203-43-31450

END,ROD

28

01593-11008

NUT

29

04050-12018

PIN,COTTER

30

209-43-13360

BRACKET

31

01010-51225

BOLT

32

01643-31232

WASHER

33

01010-50825

BOLT

34

01602-20825

WASHER,SPRING

35

209-43-13430

BELLOWS

36

21T-43-11610

PLATE

37

01220-40410

SCREW

38

01601-20410

WASHER,SPRING
