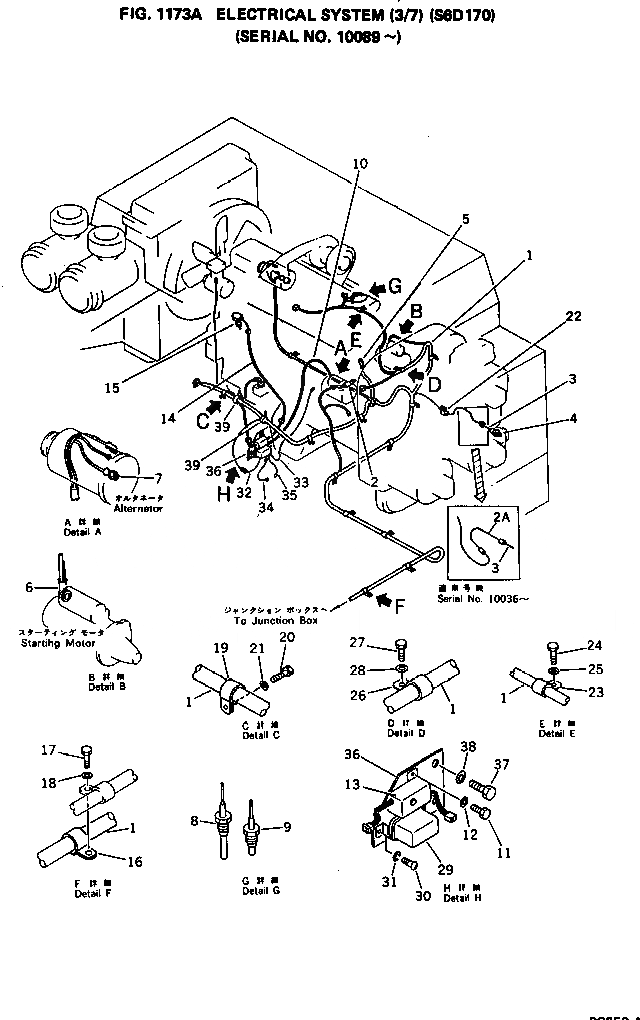

Запчасти Komatsu PC650-1 ЭЛЕКТРИКА (/7) (SD7)(№89-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

209-06-21114

WIRE ASS'Y

1

209-06-21113

WIRE ASS'Y

1

209-06-21112

WIRE ASS'Y

2

21T-06-17111

SWITCH,ENGINE OIL PRESSURE

2

21T-06-17110

SWITCH

2A

209-06-14120

WIRING HARNESS

3

209-06-21240

WIRING HARNESS

4

21T-06-12530

CONNECTOR

5

209-06-13180

WIRE

6

08038-00035

CAP

7

08038-02027

CAP

8

175-06-39960

SENSOR,THERMO

9

08620-00000

SENSOR,THERMO

10

209-06-21311

WIRE

11

01010-50816

BOLT

12

01643-30823

WASHER

13

209-06-13450

PROTECTOR,SURGE

14

209-06-13440

WIRE ASS'Y

15

21T-06-11110

SENSOR

16

08036-02514

CLIP

17

01010-51220

BOLT

18

01643-31232

WASHER

19

08036-01414

CLIP

20

01010-51220

BOLT

21

01643-31232

WASHER

22

08036-01414

CLIP

23

08036-11214

CLIP

24

01010-51220

BOLT

25

01643-31232

WASHER

26

08036-11214

CLIP

27

01010-51016

BOLT

28

01643-31032

WASHER

29

175-07-33520

RELAY

30

01220-40510

SCREW

31

01601-20513

WASHER,SPRING

32

205-06-51390

CABLE

33

209-06-21151

WIRE

34

175-07-23480

WIRE

35

209-06-14130

WIRE

36

209-06-25260

PLATE

37

01010-51225

BOLT

38

01643-31232

WASHER

39

08034-00519

BAND
