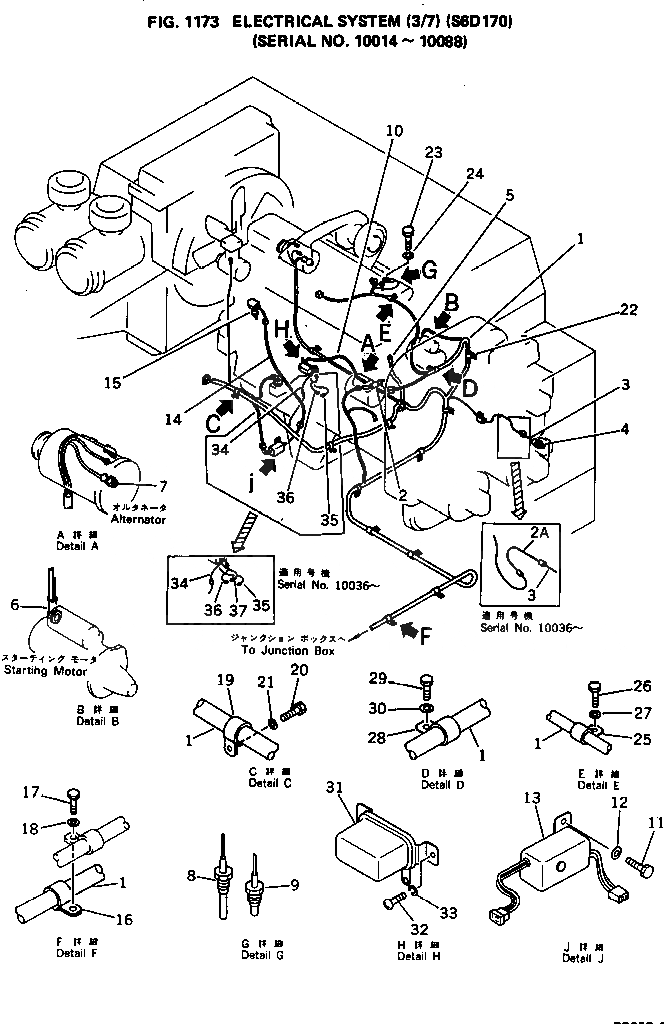

Запчасти Komatsu PC650-1 ЭЛЕКТРИКА (/7) (SD7)(№-88) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

209-06-21112

WIRE ASS'Y

1

209-06-21111

WIRE ASS'Y

2

21T-06-17110

SWITCH,ENGINE OIL PRESSURE

2A

209-06-14120

WIRING HARNESS

3

209-06-21240

WIRING HARNESS

4

21T-06-12530

CONNECTOR

5

209-06-13180

WIRE

6

08038-00035

CAP

7

08038-02027

CAP

8

175-06-39960

SENSOR,THERMO

9

08620-00000

SENSOR,THERMO

10

209-06-21310

WIRE

11

01010-50816

BOLT

12

01643-30823

WASHER

13

209-06-13450

PROTECTOR,SURGE

14

209-06-13440

WIRE ASS'Y

15

21T-06-11110

SENSOR

16

08036-02514

CLIP

17

01010-51220

BOLT

18

01643-31232

WASHER

19

08036-01414

CLIP

20

01010-51220

BOLT

21

01643-31232

WASHER

22

08036-01414

CLIP

23

01010-50612

BOLT

24

01602-20619

WASHER,SPRING

25

08036-11214

CLIP

26

01010-51220

BOLT

27

01643-31232

WASHER

28

08036-11214

CLIP

29

01010-51016

BOLT

30

01643-31032

WASHER

31

175-07-33520

RELAY

32

01220-40510

SCREW

33

01601-20513

WASHER,SPRING

34

205-06-51390

CABLE

35

209-06-21150

WIRE

36

175-07-23480

WIRE

37

209-06-14130

WIRE
