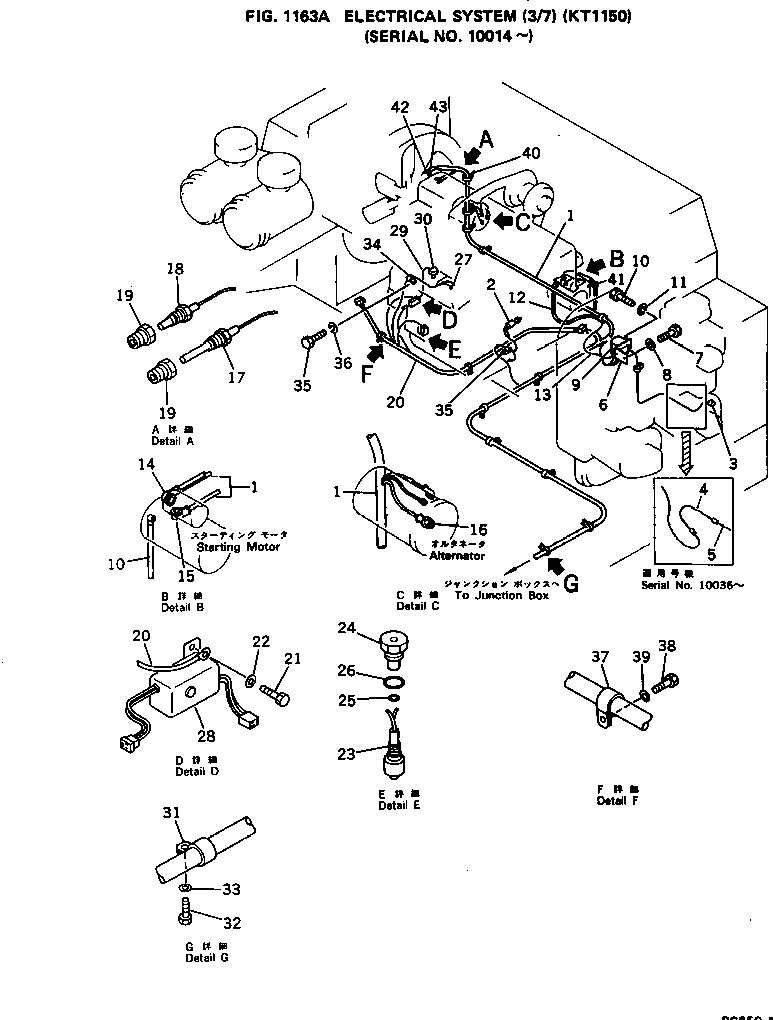

Запчасти Komatsu PC650-1 ЭЛЕКТРИКА (/7) (KT)(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

209-06-13264

WIRE ASS'Y

1

209-06-13263

WIRE ASS'Y

1

209-06-13262

WIRE ASS'Y

1

209-06-13261

WIRE ASS'Y

2

21T-06-17111

SWITCH,ENGINE OIL PRESSURE

2

21T-06-17110

SWITCH,ENGINE OIL PRESSURE

3

21T-06-12530

CONNECTOR

4

209-06-14120

WIRING HARNESS

5

209-06-21240

WIRING HARNESS

6

209-06-13231

BRACKET

7

02010-71032

BOLT

8

01643-31645

WASHER

9

600-824-4930

SAFETY RELAY A.,SAFETY

10

01010-50616

BOLT

11

01602-20619

WASHER,SPRING

12

209-06-13180

WIRE

13

209-06-13250

WIRE

14

08038-00035

CAP

15

08038-02027

CAP

16

08038-02027

CAP

17

175-06-39960

SENSOR,THERMO

18

08620-00000

SENSOR,THERMO

19

209-06-13220

NIPPLE

20

209-06-13211

WIRE ASS'Y

21

01010-50816

BOLT

22

01643-30823

WASHER

23

281-06-13942

SWITCH

24

281-03-11920

PLUG

25

07002-21023

O-RING

26

07002-23634

O-RING

27

08038-00519

CAP

28

209-06-13450

PROTECTOR,SURGE

29

209-06-13440

WIRE ASS'Y

30

21T-06-11110

SENSOR

31

08036-02514

CLIP

32

01010-51220

BOLT

33

01643-31232

WASHER

34

08036-10814

CLIP

35

02010-70619

BOLT

36

01602-21030

WASHER,SPRING

37

08036-01414

CLIP

38

01010-51220

BOLT

39

01643-31232

WASHER

40

08034-00519

BAND

41

08036-01414

CLIP

42

08021-00400

CONNECTOR

43

08022-04001

CONNECTOR
