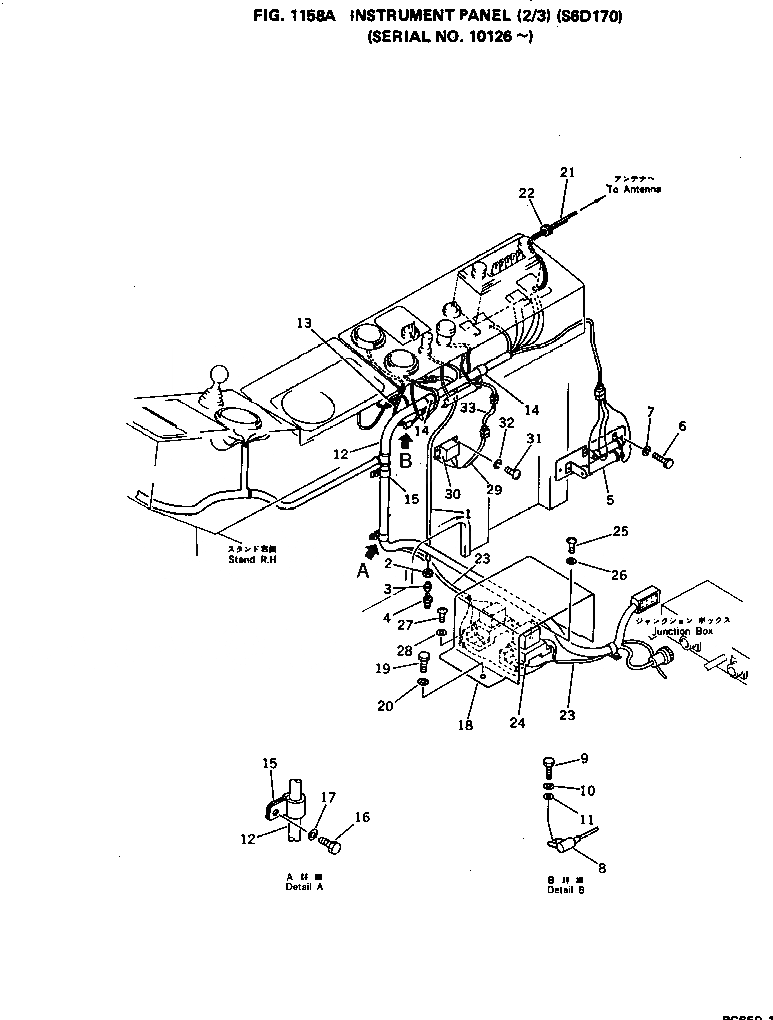

Запчасти Komatsu PC650-1 ПАНЕЛЬ ПРИБОРОВ (/) (SD7) (№-)(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

07822-00405

TUBE

2

07832-00410

NUT

3

07831-00411

SLEEVE

4

07836-00410

CONNECTOR

5

209-06-11353

RESISTOR

6

01010-50612

BOLT

7

01602-20619

WASHER,SPRING

8

205-06-51290

CONDENSER

9

01010-50612

BOLT

10

01602-20619

WASHER,SPRING

11

01643-30623

WASHER

12

209-06-25120

WIRING HARNESS

13

209-06-21290

WIRING HARNESS

14

08036-03014

CLIP

15

08036-00614

CLIP

16

01010-51016

BOLT

17

01643-31032

WASHER

18

209-06-25240

COVER

19

01010-51225

BOLT

20

01643-31232

WASHER

21

21T-06-16260

CABLE

22

08037-01008

GROMMET

23

209-06-12380

WIRING HARNESS

24

209-06-12390

RELAY ASS'Y

25

01220-40416

SCREW

26

01641-40405

WASHER

27

01220-40408

SCREW

28

01641-40405

WASHER

29

209-06-21320

WIRING HARNESS

30

600-815-2520

SWITCH

31

01220-40510

SCREW

32

01601-20513

WASHER,SPRING

33

209-06-14110

WIRING HARNESS
