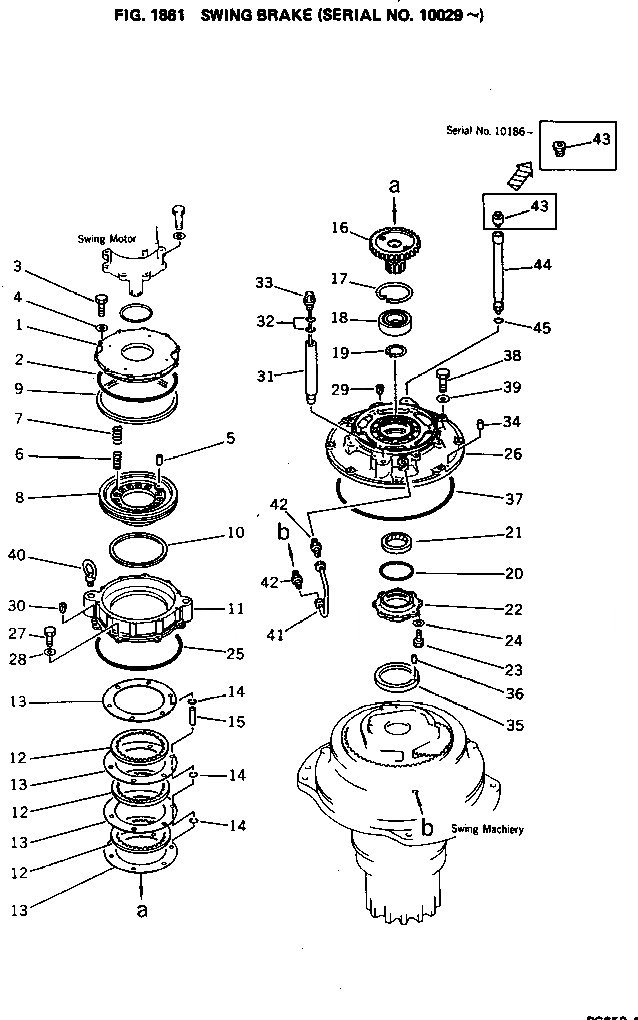

Запчасти Komatsu PC650-1 ПОВОРОТН. ТОРМОЗ.(№9-) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

21T-33-11130

CASE

2

07000-05305

O-RING

3

01010-51235

BOLT

4

01643-31232

WASHER

5

21T-33-11190

PIN

6

21T-33-11230

SPRING,SMALL

7

21T-33-11220

SPRING,LARGE

8

21T-33-11140

PISTON

9

176-76-14210

RING,SEAL

10

154-15-22831

RING,SEAL

11

21T-33-11120

CASE

12

176-76-14190

DISK

13

21T-33-11170

PLATE

14

175-15-42880

SPRING

15

21T-33-11180

PIN

16

21T-33-11161

SHAFT

17

04071-00130

RING,SNAP

18

06041-06017

BEARING

19

04064-08530

RING,SNAP

20

07000-02125

O-RING

21

21T-33-11210

SEAL,OIL

22

21T-33-11150

COVER

23

01010-51025

BOLT

24

01602-21030

WASHER,SPRING

25

07000-05345

O-RING

26

21T-33-11110

CASE

27

01010-51235

BOLT

28

01643-31232

WASHER

29

07049-01620

PLUG

30

07049-01215

PLUG

31

21T-26-11481

FILLER

32

07000-03022

O-RING

33

21T-33-11270

GAUGE

34

113-33-22180

PIN,DOWEL

35

21T-26-11450

WASHER,THRUST

36

04020-00616

PIN

37

07000-05480

O-RING

38

01010-51675

BOLT

39

01643-31645

WASHER

40

04530-13045

BOLT,EYE

41

21T-26-11531

TUBE

42

07213-51013

CONNECTOR

43

07040-11812

PLUG

43

07030-10252

BREATHER

44

21T-33-11240

PIPE

45

07002-01823

O-RING
