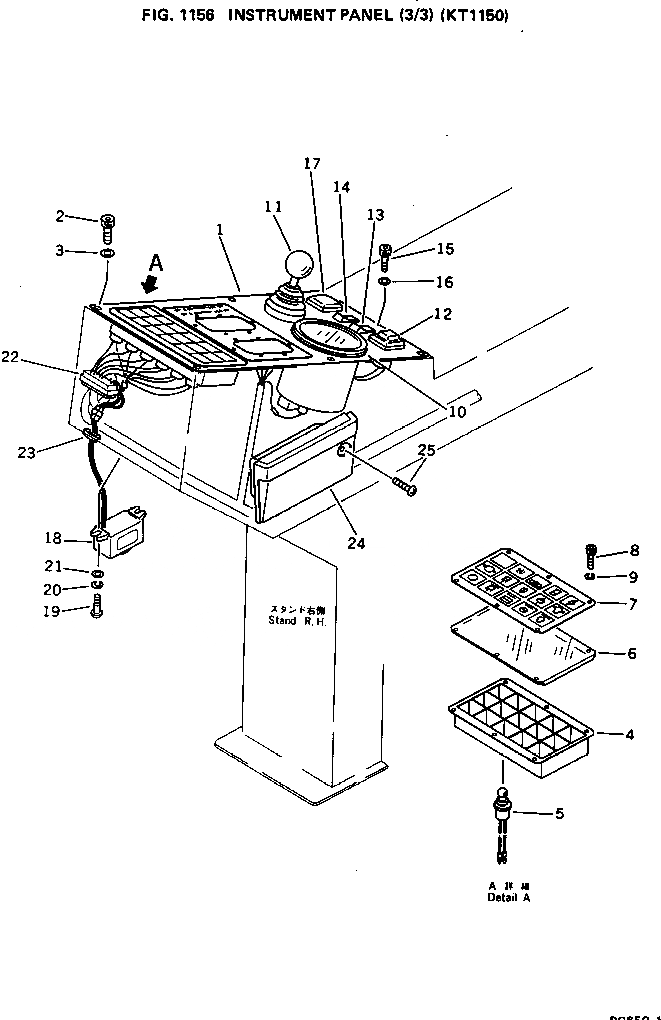

Запчасти Komatsu PC650-1 ПАНЕЛЬ ПРИБОРОВ (/) (KT) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

209-06-11682

PANEL,FRONT (JAPANESE)

1

209-06-11211

PANEL,FRONT (ENGLISH)

2

21T-06-13620

BOLT

3

21T-06-13560

WASHER

4

209-06-11320

HOLDER

5

21T-06-16620

LAMP ASS'Y

5

21T-06-16620

LAMP ASS'Y

5

08111-02430

BULB, 3W

6

209-06-11340

PLATE

7

209-06-11712

PLATE

7

209-06-11711

PLATE

8

21T-06-16470

BOLT

9

01601-20307

WASHER,SPRING

10

209-06-11930

TACHOMETER

11

209-06-11410

SWITCH ASS'Y,FUEL CONTROL

12

209-06-11480

SWITCH ASS'Y,ENGINE STOP

13

209-06-11430

SWITCH ASS'Y,BUZZER

14

209-06-11440

SWITCH ASS'Y,MONITOR TEST

15

21T-06-16470

BOLT

16

01601-20307

WASHER,SPRING

17

209-06-11450

SWITCH ASS'Y,ENGINE START

18

209-06-11360

BUZZER

19

01220-40416

SCREW

20

01601-20410

WASHER,SPRING

21

01642-20405

WASHER

22

209-06-11632

WIRING HARNESS

22

209-06-11631

WIRING HARNESS

23

201-54-13210

GROMMET

24

206-54-15540

ASHTRAY

25

01224-40416

SCREW
