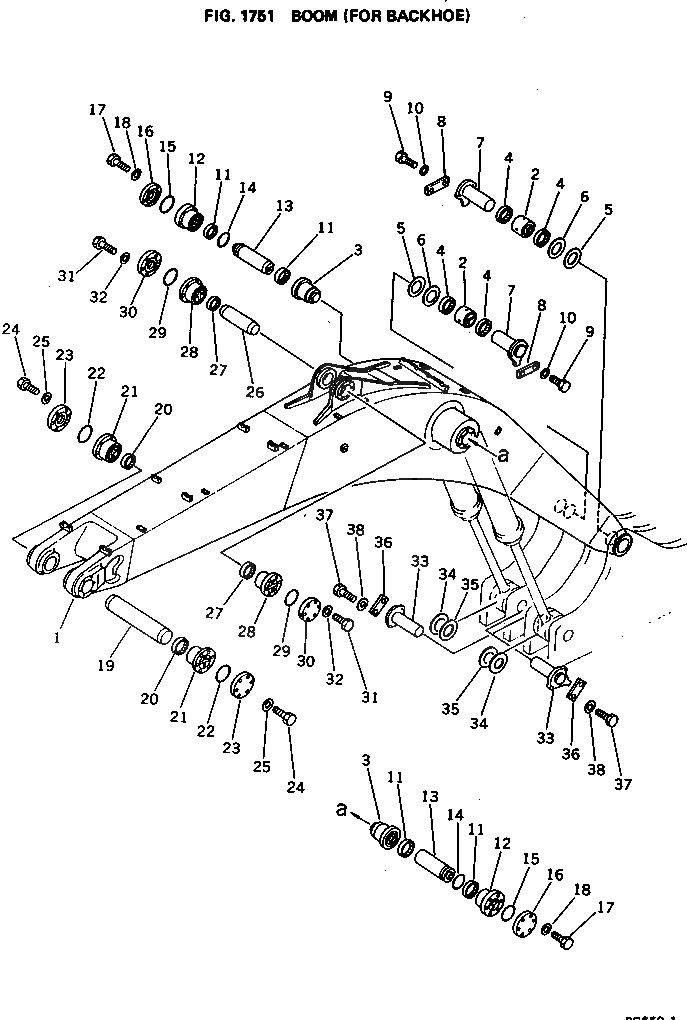

Запчасти Komatsu PC650-1 СТРЕЛА (ДЛЯ ЭКСКАВАТ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

209-70-00010

BOOM ASS'Y

1

BOOM

2

209-72-11251

BUSHING

3

209-70-11240

BUSHING

4

209-72-11261

SEAL

|$5

209-72-00010

SHIM ASS'Y

5

SHIM, 1.0MM

6

SHIM, 1.5MM

7

209-72-11170

PIN

8

207-70-11230

PLATE

9

01010-51640

BOLT

10

01643-31645

WASHER

11

209-70-11270

SEAL

12

209-70-11250

BUSHING

13

209-70-11260

PIN

14

07000-05105

O-RING

15

07000-02135

O-RING

16

209-70-11230

COVER

17

01010-51275

BOLT

18

01643-31232

WASHER

19

209-70-11170

PIN

20

209-70-11340

SEAL

21

209-70-11190

BUSHING

22

07000-05160

O-RING

23

209-70-11210

COVER

24

01010-51655

BOLT

25

01643-31645

WASHER

26

209-70-11160

PIN

27

209-70-11270

SEAL

28

209-70-11220

BUSHING

29

07000-02135

O-RING

30

209-70-11230

COVER

31

01010-51245

BOLT

32

01643-31232

WASHER

33

209-72-11211

PIN

|$35

209-72-00020

SHIM ASS'Y

34

SHIM, 1.0MM

35

SHIM, 1.5MM

36

207-70-11230

PLATE

37

01010-51640

BOLT

38

01643-31645

WASHER
