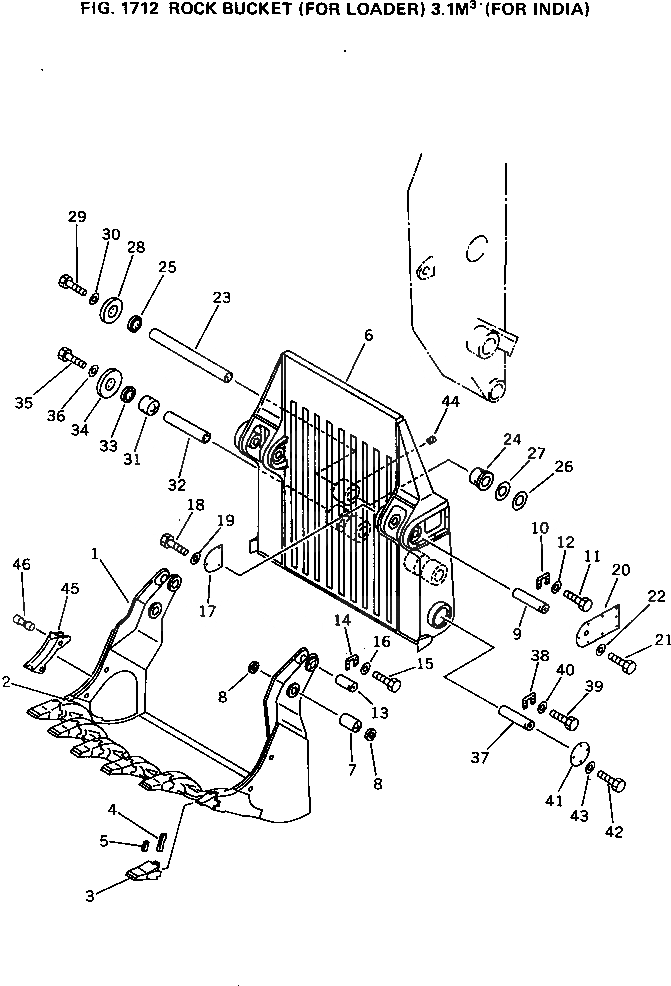

Запчасти Komatsu PC650-1 ROCK КОВШ (ДЛЯ ПОГРУЗ.) .M. (ДЛЯ INDIA) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

209-966-1120

BUCKET,FRONT

2

209-72-14133

NOSE LIP ASS'Y

3

209-72-14150

POINT

4

209-72-14160

PIN

5

209-72-14170

LOCK

6

209-966-1110

BUCKET,REAR

7

209-72-14310

BUSHING

8

209-72-14320

SEAL

9

209-72-14290

PIN

10

209-72-14260

LOCK

11

01010-52045

BOLT

12

01643-32060

WASHER

13

209-72-14280

PIN

14

209-72-14260

LOCK

15

01010-52045

BOLT

16

01643-32060

WASHER

17

209-966-1130

COVER

18

01010-51020

BOLT

19

01643-31032

WASHER

20

209-72-14332

COVER

21

01010-51020

BOLT

22

01643-31032

WASHER

23

209-72-14211

PIN

24

209-72-12191

BUSHING

25

209-72-12211

SEAL

26

209-72-11220

SHIM, 1.0MM

27

209-72-11230

SHIM, 1.5MM

28

209-72-14222

RETAINER

29

01010-52460

BOLT

30

01643-32460

WASHER

31

209-72-14231

BUSHING

32

209-72-14240

PIN

33

209-72-12211

SEAL

34

209-72-14220

RETAINER

35

01010-51645

BOLT

36

01643-31645

WASHER

37

209-72-14290

PIN

38

209-72-14260

LOCK

39

01010-52045

BOLT

40

01643-32060

WASHER

41

209-72-14271

COVER

42

01010-51020

BOLT

43

01643-31032

WASHER

44

07049-01012

PLUG

45

195-78-21320

PROTECTOR

46

09244-02508

PIN
