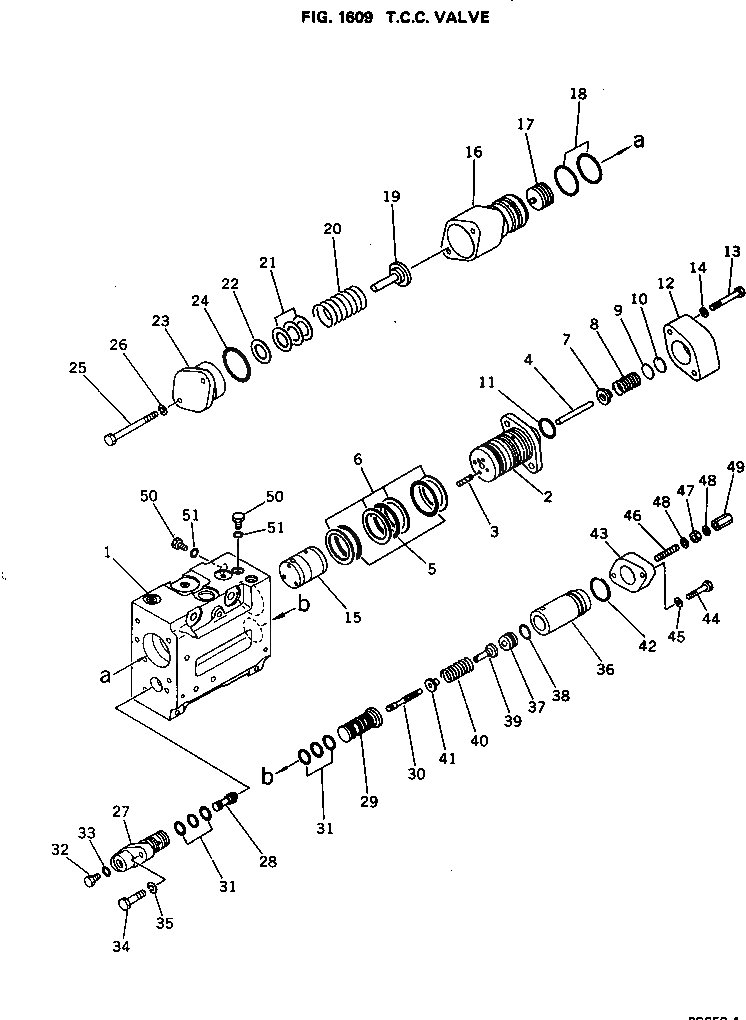

Запчасти Komatsu PC650-1 T.C.C. КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-47-20002

PUMP ASS'Y

|$1

706-47-20001

PUMP ASS'Y

|$2

706-46-21302

PUMP ASS'Y

|$3

706-46-21301

PUMP ASS'Y

|$4

706-46-52100

TCC VALVE ASS'Y

1

BODY ASS'Y

2

FLANGE

3

PISTON

4

PIN

5

O-RING

6

RING

7

RETAINER

8

SPRING

9

SHIM

10

SHIM

11

O-RING

12

COVER

13

BOLT

14

WASHER,SPRING

15

SPOOL

16

FLANGE

17

PISTON

18

O-RING

19

RETAINER

20

SPRING

21

SHIM

22

SHIM

23

COVER

24

O-RING

25

BOLT

26

WASHER,SPRING

27

COVER

28

PISTON

29

SLEEVE

30

SPOOL

31

O-RING

32

07040-11007

PLUG

33

07002-01023

O-RING

34

BOLT

35

WASHER,SPRING

36

SLEEVE

37

STOPPER

38

O-RING

39

706-46-51460

RETAINER

40

706-46-51390

SPRING

41

706-46-51310

RETAINER

42

07000-03030

O-RING

43

706-46-53150

PLATE

44

01010-50830

BOLT

45

01602-20825

WASHER,SPRING

46

700-90-51281

SCREW

47

01580-10806

NUT

48

700-90-51290

WASHER

49

700-90-51311

NUT

50

07040-11007

PLUG

51

07002-01023

O-RING
