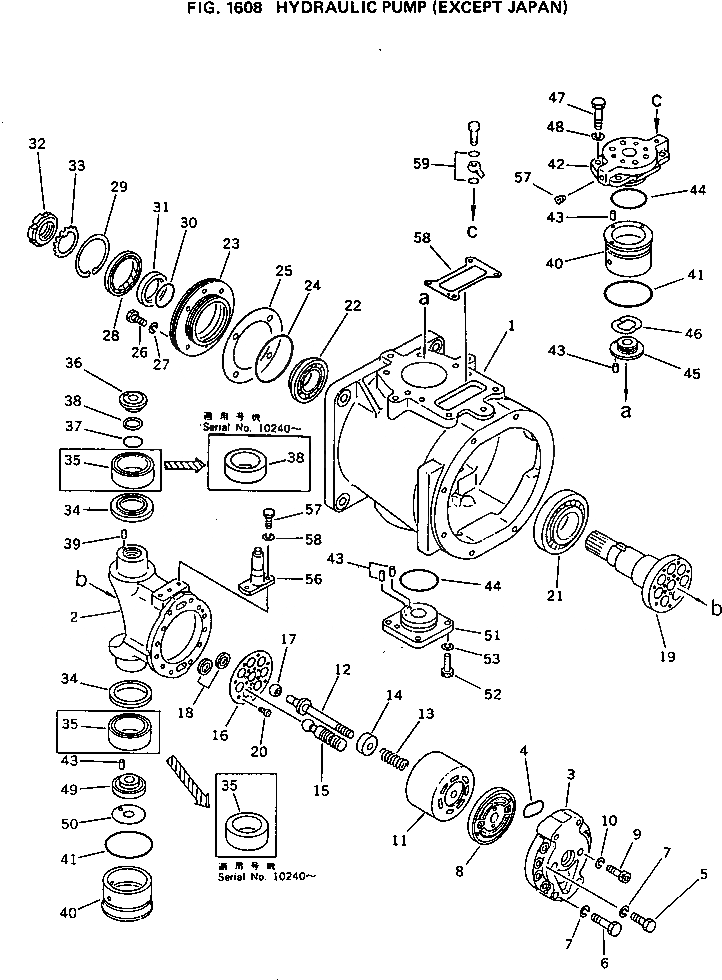

Запчасти Komatsu PC650-1 ГИДР. НАСОС. (КРОМЕ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
706-46-21302
PUMP ASS'Y
|$1
706-46-21301
PUMP ASS'Y
|$2
706-46-21402
PUMP ASS'Y
|$3
706-46-21401
PUMP ASS'Y
|$4
706-46-45000
PUMP SUB ASS'Y
|$5
706-46-42001
PUMP SUB ASS'Y
1
CASE,PUMP
2
CASE,CYLINDER
3
COVER ASS'Y (KIT)
4
O-RING
5
BOLT
6
BOLT
7
WASHER,SPRING
8
PLATE,VALVE (KIT)
9
BOLT (KIT)
10
WASHER,SPRING (KIT)
11
BLOCK,CYLINDER (KIT)
12
SHAFT,CENTER (KIT)
13
SPRING (KIT)
14
RING,CENTER (KIT)
15
PISTON SUB ASS'Y (KIT)
16
RETAINER (KIT)
17
BALL,CENTER (KIT)
18
HOLDER (KIT)
19
SHAFT,DRIVE (KIT)
20
SCREW
21
BEARING (KIT)
22
BEARING
23
706-46-40360
BOSS
24
07000-32100
O-RING (KIT)
24
07000-02100
O-RING (KIT)
25
706-46-40970
GASKET (KIT)
26
01010-51035
BOLT
27
01602-21030
WASHER,SPRING
28
706-46-40610
SEAL,OIL (KIT)
28
706-76-40920
SEAL,OIL (KIT)
29
04065-09030
RING,SNAP
30
07000-33045
O-RING (KIT)
30
07000-03045
O-RING (KIT)
31
706-76-40910
RING
32
01530-04512
NUT
33
01658-24523
WASHER,LOCK (KIT)
34
706-66-40540
SPACER
35
706-46-41550
COLLAR
35
706-46-41580
BEARING
36
RING,SEAL
37
O-RING (KIT)
38
RING,BACK-UP (KIT)
39
PIN,DOWEL
40
706-46-41510
SLEEVE SUB ASS'Y
40
706-46-40520
SLEEVE
41
07000-02080
O-RING (KIT)
42
706-46-40640
BOSS,TRUNNION
43
706-66-40271
PIN,DOWEL
44
07000-02060
O-RING (KIT)
45
706-66-40221
RING,SEAL
46
706-66-40260
WASHER,WAVE
47
01010-51035
BOLT
48
01602-21030
WASHER,SPRING
49
706-66-40620
RING
50
706-46-41630
WASHER,THRUST
51
706-46-41050
BOSS,TRUNNION
52
01010-51035
BOLT
53
01602-21030
WASHER,SPRING
54
706-46-40290
PIN
55
01010-51030
BOLT
56
01602-21030
WASHER,SPRING
57
706-46-40920
PLUG
58
706-46-40910
GASKET
59
07000-12012
O-RING
1K
706-98-05040
SERVICE KIT
3
COVER ASS'Y
8
PLATE,VALVE
9
BOLT
10
WASHER,SPRING
2K
706-98-00781
SERVICE KIT
2K
706-98-00780
SERVICE KIT
4
O-RING
9
BOLT
10
WASHER,SPRING
11
BLOCK,CYLINDER
12
SHAFT,CENTER
13
SPRING
14
RING,CENTER
15
PISTON SUB ASS'Y
16
RETAINER
17
BALL,CENTER
18
HOLDER
19
SHAFT,DRIVE
20
SCREW
21
BEARING
24
07000-32100
O-RING
24
07000-02100
O-RING
25
706-46-40970
GASKET
28
706-76-40610
SEAL,OIL
28
706-76-40920
SEAL,OIL
30
07000-33045
O-RING
30
07000-03045
O-RING
33
01658-24523
WASHER,LOCK
37
O-RING
38
RING,BACK-UP
41
07000-02080
O-RING
44
07000-02060
O-RING
57
706-46-40910
GASKET
58
07000-12012
O-RING
59
07002-02434
O-RING,(SEE FIG.1606-3)
60
07000-02070
O-RING,(NOT SHOWN)
60
07000-05280
O-RING,(NOT SHOWN)
60
07002-11423
O-RING,(NOT SHOWN)
60
07000-02018
O-RING,(NOT SHOWN)
60
07002-02034
O-RING,(NOT SHOWN)
Выбрано товаров: 111
