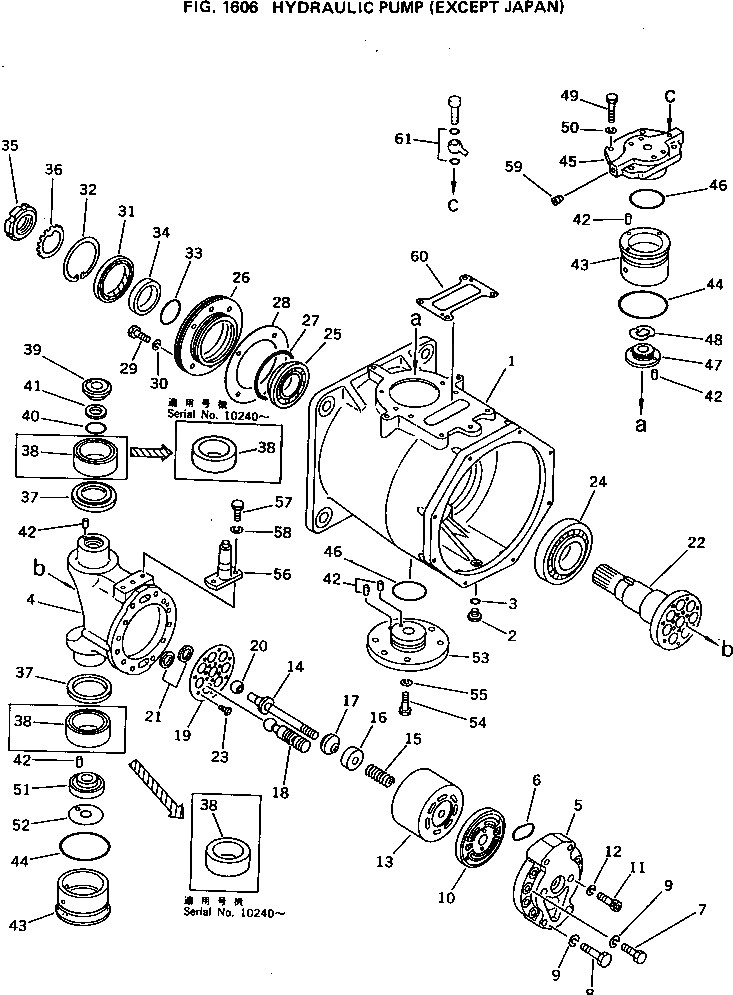

Запчасти Komatsu PC650-1 ГИДР. НАСОС. (КРОМЕ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-47-20002

PUMP ASS'Y

|$1

706-47-20001

PUMP ASS'Y

|$2

706-47-20102

PUMP ASS'Y

|$3

706-47-20101

PUMP ASS'Y

|$4

706-47-45000

PUMP SUB ASS'Y

|$5

706-47-43001

PUMP SUB ASS'Y

1

CASE,PUMP

2

PLUG

3

O-RING

4

CASING,CYLINDER

5

END COVER SUB A. (KIT)

6

O-RING (KIT)

7

BOLT

8

BOLT

9

WASHER,SPRING

10

PLATE,VALVE (KIT)

11

BOLT (KIT)

12

WASHER,SPRING (KIT)

13

BLOCK,CYLINDER (KIT)

14

SHAFT,CENTER (KIT)

15

SPRING (KIT)

16

PLATE,THRUST (KIT)

17

SEAT,BALL (KIT)

18

PISTON SUB ASS'Y (KIT)

19

RETAINER (KIT)

20

BALL,CENTER (KIT)

21

HOLDER (KIT)

22

SHAFT,DRIVE (KIT)

23

SCREW (KIT)

24

BEARING (KIT)

25

BEARING

26

706-47-40360

BOSS

27

07000-32115

O-RING (KIT)

27

07000-02115

O-RING (KIT)

28

706-47-40970

GASKET (KIT)

29

01010-51240

BOLT

30

01602-21236

WASHER,SPRING

31

706-47-40610

SEAL,OIL (KIT)

31

706-77-40921

SEAL,OIL (KIT)

32

706-77-40390

RING,SNAP

33

07000-35055

O-RING (KIT)

33

07000-05055

O-RING (KIT)

34

706-77-40910

RING

35

01530-05212

NUT

36

01658-05223

WASHER,LOCK (KIT)

37

706-47-41540

SPACER

38

706-47-41550

COLLAR

38

706-47-40580

BEARING

39

RING,SEAL

40

O-RING (KIT)

41

RING,BACK-UP

42

PIN,DOWEL

43

706-47-41510

SLEEVE SUB ASS'Y

43

706-47-40520

SLEEVE

44

07000-02100

O-RING (KIT)

45

706-47-40041

BOSS,TRUNNION

46

07000-02070

O-RING (KIT)

47

706-47-40220

RING,SEAL

48

706-47-40260

WASHER,WAVE

49

01010-51240

BOLT

50

01602-21236

WASHER,SPRING

51

706-47-40620

RING

52

706-47-40631

WASHER,THRUST

53

706-47-40050

BOSS,TRUNNION

54

01010-51240

BOLT

55

01602-21236

WASHER,SPRING

56

706-47-40290

PIN

57

01010-51235

BOLT

58

01602-21236

WASHER,SPRING

59

706-46-40920

PLUG

60

706-46-40910

GASKET

61

07000-12012

O-RING

1K

706-98-05060

END COVER KIT

5

END COVER SUB A.

10

PLATE,VALVE

11

BOLT

12

WASHER,SPRING

2K

706-98-05051

DRIVE SHAFT KIT

2K

706-98-05050

DRIVE SHAFT KIT

6

O-RING

13

BLOCK,CYLINDER

14

SHAFT,CENTER

15

SPRING

16

PLATE,THRUST

17

SEAT,BALL

18

PISTON SUB ASS'Y

19

RETAINER

20

BALL,CENTER

21

HOLDER

22

SHAFT,DRIVE

23

SCREW

24

BEARING

27

07000-32115

O-RING

27

07000-02115

O-RING

28

706-47-40970

GASKET

31

706-47-40610

SEAL,OIL

31

706-77-40920

SEAL,OIL

33

07000-35055

O-RING

33

07000-05055

O-RING

36

01658-05223

WASHER,LOCK

40

O-RING

41

RING,BACK UP

44

07000-02100

O-RING

46

07000-02070

O-RING

59

706-46-40910

GASKET

60

07000-12012

O-RING

61

07000-02018

O-RING,(SEE FIG.1601-16,1603-16)

61

07000-05335

O-RING,(SEE FIG.1601-4,1602-4)

61

07000-02018

O-RING,(SEE FIG.1601-29,1602-17)
