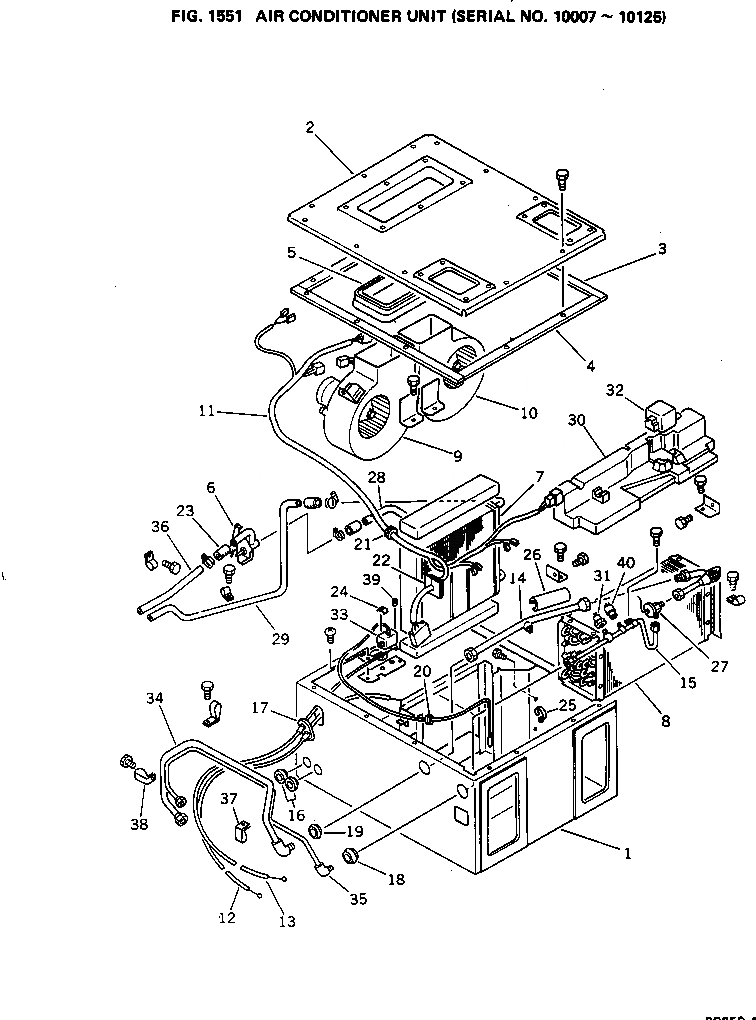

Запчасти Komatsu PC650-1 БЛОК КОНДИЦИОНЕРА(№7-) ОСНОВНАЯ РАМА И КАБИНА

|$0

198-911-4100

AIR CONDITIONER UNIT

1

198-911-4860

CASE

2

198-911-4870

COVER

3

198-911-5650

PACKING

4

198-911-5640

PACKING

5

198-911-5660

PACKING

6

198-911-4880

VALVE

7

198-911-4890

CORE

8

198-911-4910

EVAPORATOR

9

198-911-5500

BLOWER ASS'Y

10

198-911-5600

BLOWER ASS'Y

11

198-911-4920

HARNESS

12

198-911-4930

CABLE

13

198-911-4940

CABLE

14

PIPE

15

PIPE

16

198-911-4950

GROMMET

17

198-911-4960

GROMMET

18

145-Z79-6490

GROMMET

19

145-Z79-6480

GROMMET

20

198-911-4970

GROMMET

21

198-911-4980

GROMMET

22

198-911-4990

GROMMET

23

198-911-5550

HOSE

24

145-Z79-6520

CLIP

25

145-Z79-6870

BAND

26

198-911-5670

PACKING

27

198-911-5560

VALVE

28

PIPE

29

PIPE

30

198-911-5570

INSULATOR

31

198-911-5580

SWITCH

32

198-911-5590

RELAY ASS'Y

33

198-911-5610

THERMOSTAT

34

198-911-4630

TUBE

35

198-911-4620

TUBE

36

PIPE

37

198-911-5620

CLAMP

38

198-911-4690

CLIP

39

195-979-4160

BUSHING

40

198-911-5630

SWITCH
