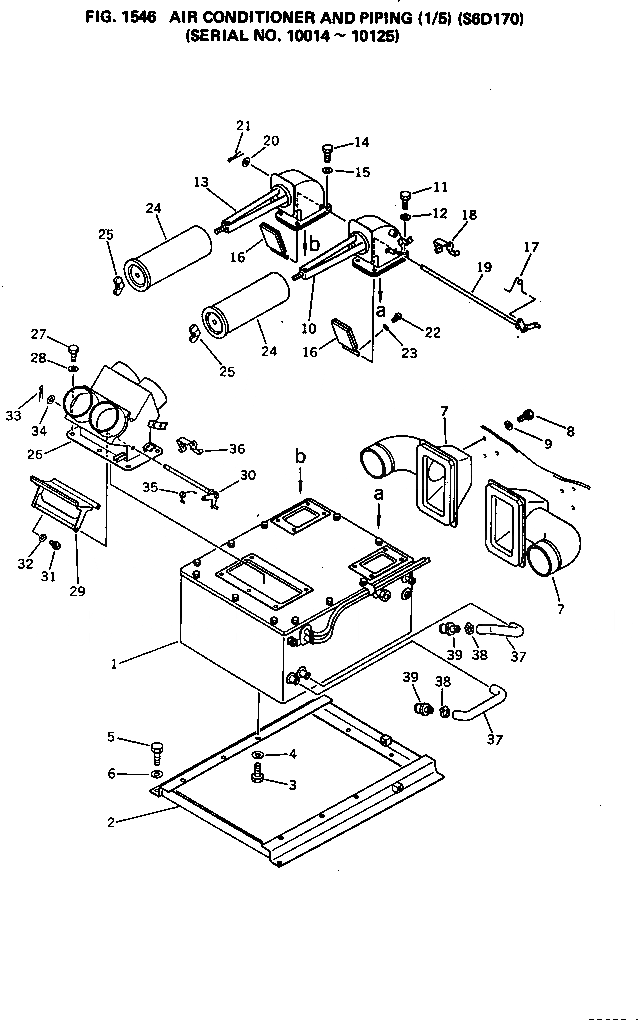

Запчасти Komatsu PC650-1 КОНДИЦ. ВОЗДУХА И ТРУБЫ (/) (SD7)(№-) ОСНОВНАЯ РАМА И КАБИНА

1

198-911-4100

AIR CONDITIONER UNIT

2

209-988-3110

FRAME

3

01010-51025

BOLT

4

01643-31032

WASHER

5

01010-51230

BOLT

6

01643-31232

WASHER

7

209-988-3140

DUCT

8

01010-51020

BOLT

9

01643-31032

WASHER

10

198-911-4120

DUCT

11

01010-51025

BOLT

12

01643-31032

WASHER

13

198-911-4290

DUCT

14

01010-51025

BOLT

15

01643-31032

WASHER

16

198-911-4210

DAMPER

17

154-979-2241

SPRING

18

145-Z79-6520

CLIP

19

198-911-4220

LEVER

20

01641-20812

WASHER

21

04050-12012

PIN,COTTER

22

01220-40408

SCREW

23

01602-20410

WASHER,SPRING

24

145-Z79-5810

FILTER

25

01541-21260

NUT,WING

26

209-988-3130

DUCT

27

01010-51020

BOLT

28

01643-31032

WASHER

29

209-988-3210

VALVE

30

209-988-3220

LEVER

31

01220-40408

SCREW

32

01602-20410

WASHER,SPRING

33

04050-12012

PIN

34

01641-20812

WASHER

35

154-979-2241

SPRING

36

145-Z79-6520

CLIP

37

198-911-5130

HOSE

38

07281-00289

CLAMP

39

198-911-5140

JOINT
