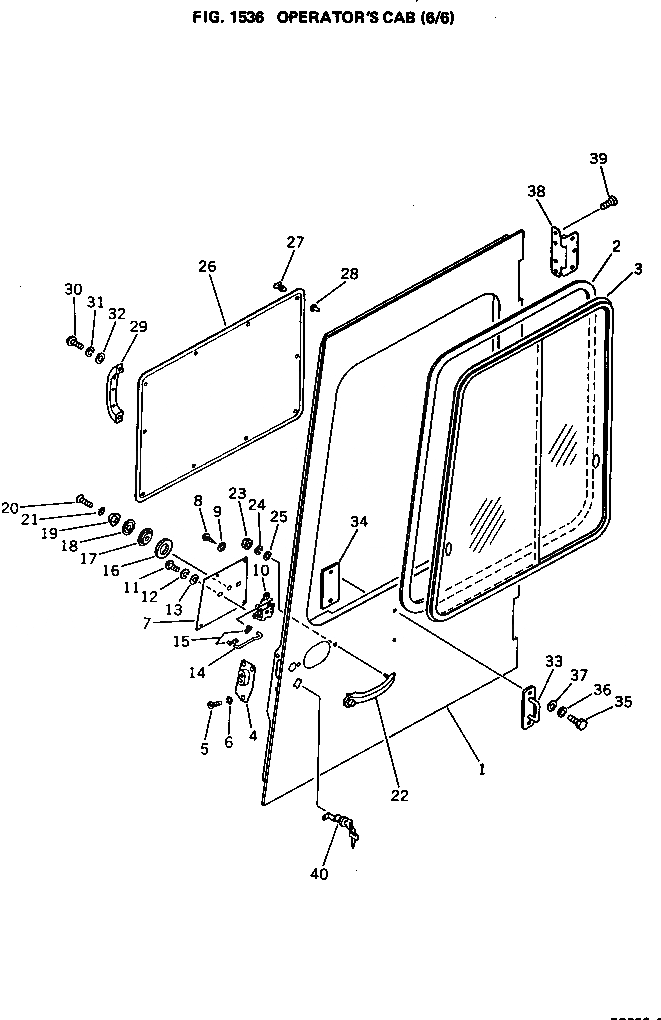

Запчасти Komatsu PC650-1 КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

1

209-54-11151

DOOR

2

209-54-11551

SEAL

3

209-54-11501

SASH ASS'Y

4

566-54-24421

LOCK ASS'Y

5

01224-40612

SCREW

6

205-54-53720

WASHER,LOCK

7

209-54-11271

COVER

8

265-54-53630

SCREW

9

01641-20508

WASHER

10

205-54-53430

CONTROL,REMOTE

11

01220-40612

SCREW

12

01602-20619

WASHER,SPRING

13

01642-20608

WASHER

14

566-54-24830

ROD

15

566-54-24840

SNAP

16

205-54-61520

SEAT

17

566-54-24260

BASE

18

566-54-24270

ESCUTCHEON

19

566-54-24550

HANDLE,REMOTE CONTROL

20

01225-40516

SCREW

21

205-54-53710

WASHER,LOCK

22

205-54-51270

HANDLE

23

01580-10504

NUT

24

01601-20513

WASHER,SPRING

25

01641-20508

WASHER

26

209-54-11412

PAD,TRIM

27

205-54-51560

CLIP

28

205-54-51570

GROMMET

29

205-54-51590

HANDLE

30

01220-40625

SCREW

31

01602-20619

WASHER,SPRING

32

01641-20608

WASHER

33

205-54-66960

STRIKER

34

205-54-66970

PLATE

35

01010-50820

BOLT

36

01602-20825

WASHER,SPRING

37

01643-30823

WASHER

38

205-54-67950

HINGE ASS'Y

39

205-54-68510

SCREW

40

566-54-24441

KEY ASS'Y
