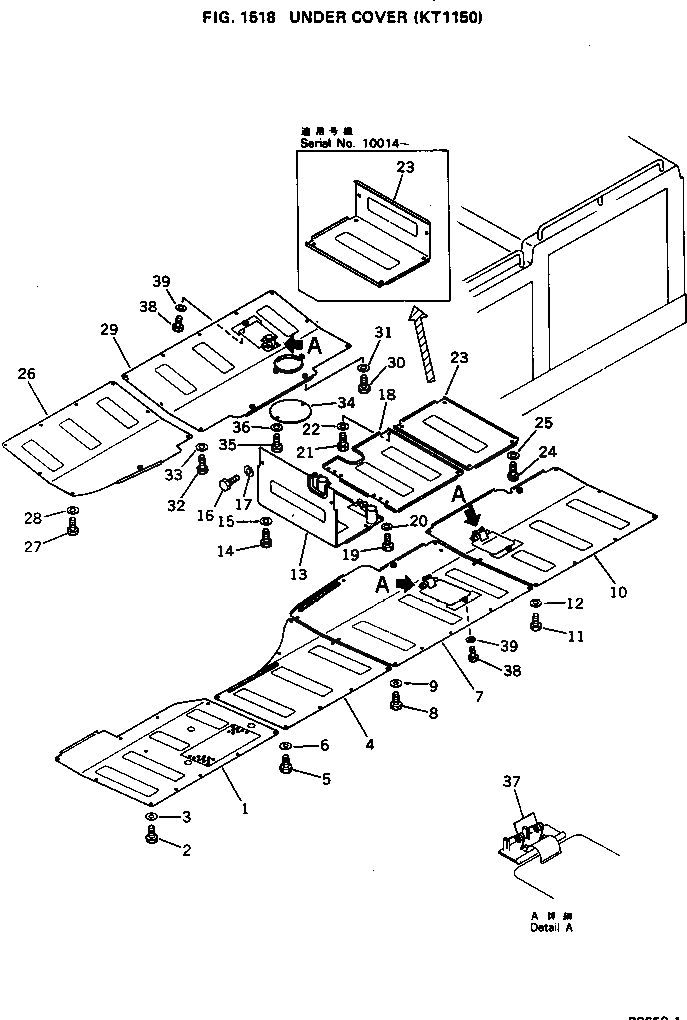

Запчасти Komatsu PC650-1 НИЖН. КРЫШКА (KT) ОСНОВНАЯ РАМА И КАБИНА

1

209-54-14511

COVER

2

01010-51235

BOLT

3

175-54-34170

WASHER

3

209-54-14650

WASHER

4

209-54-14521

COVER

5

01010-51235

BOLT

6

175-54-34170

WASHER

6

209-54-14650

WASHER

7

209-54-14531

COVER

8

01010-51235

BOLT

9

175-54-34170

WASHER

9

209-54-14650

WASHER

10

209-54-14541

COVER

11

01010-51235

BOLT

12

175-54-34170

WASHER

12

209-54-14650

WASHER

13

209-54-31330

COVER

14

01010-51235

BOLT

15

175-54-34170

WASHER

15

209-54-14650

WASHER

16

01010-51235

BOLT

17

175-54-34170

WASHER

17

209-54-14650

WASHER

18

209-54-14551

COVER

19

01010-51230

BOLT

20

01643-31232

WASHER

21

01010-51235

BOLT

22

175-54-34170

WASHER

22

209-54-14650

WASHER

23

209-54-14562

COVER

23

209-54-14561

COVER

24

01010-51235

BOLT

24

01010-51235

BOLT

25

175-54-34170

WASHER

25

175-54-34170

WASHER

26

209-54-14591

COVER

27

01010-51235

BOLT

28

175-54-34170

WASHER

28

209-54-14650

WASHER

29

209-54-14611

COVER

30

01010-51235

BOLT

31

175-54-34170

WASHER

31

209-54-14650

WASHER

32

01010-51235

BOLT

33

175-54-34170

WASHER

33

209-54-14650

WASHER

34

208-54-12710

COVER

35

01010-51230

BOLT

36

01643-31232

WASHER

37

09467-00002

SPRING

38

01010-51230

BOLT

39

01643-31232

WASHER
