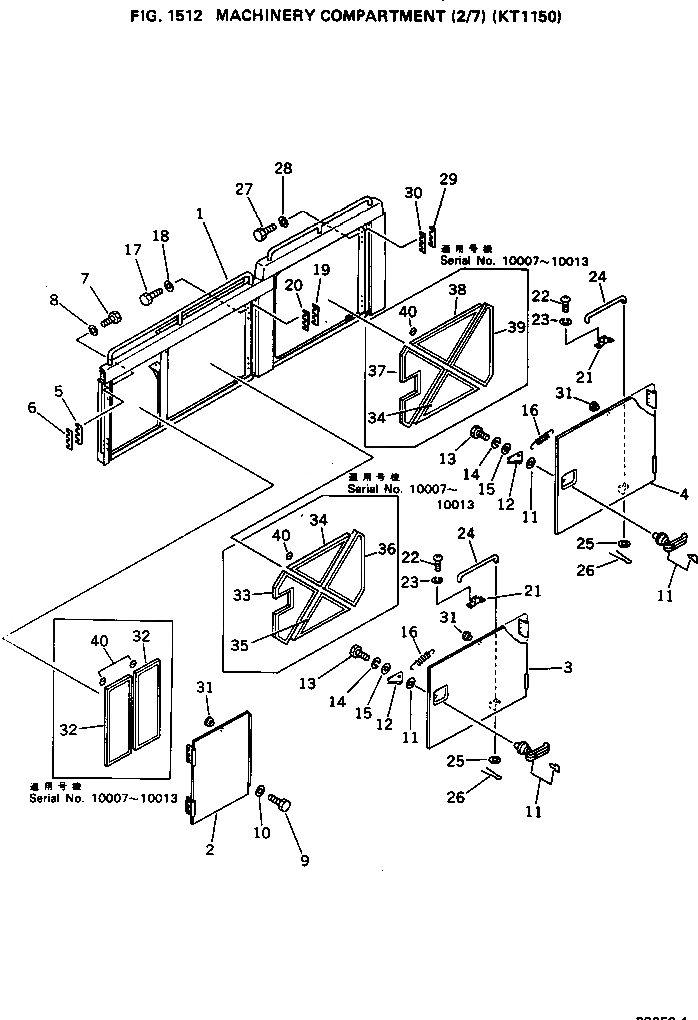

Запчасти Komatsu PC650-1 MACHINERY ОБСТАНОВКА (/7) (KT) ОСНОВНАЯ РАМА И КАБИНА

1

209-54-12111

FRAME

2

209-54-12131

DOOR,R.H.

2

209-54-12130

DOOR,R.H.

3

209-54-12122

DOOR

3

209-54-12121

DOOR

4

209-54-31111

DOOR

4

209-54-31110

DOOR

|$7

205-54-00200

SHIM ASS'Y

5

SHIM, 1.0MM

6

SHIM, 0.5MM

7

01010-51230

BOLT

8

01643-31232

WASHER

9

01010-51230

BOLT

9

01010-51230

BOLT

10

01643-31232

WASHER

10

01643-31232

WASHER

11

21T-54-12310

HANDLE,LOCK

12

21T-54-12330

PLATE

13

01010-50820

BOLT

14

01602-20825

WASHER,SPRING

15

01643-30823

WASHER

16

135-43-14520

SPRING

17

01010-51230

BOLT

18

01643-31232

WASHER

|$24

205-54-00200

SHIM ASS'Y

19

SHIM, 1.0MM

20

SHIM, 0.5MM

21

20B-54-12210

SPRING

22

01220-40408

SCREW

23

01601-20410

WASHER,SPRING

24

209-54-12230

BAR

25

01641-21016

WASHER

26

04050-13018

PIN,COTTER

27

01010-51230

BOLT

28

01643-31232

WASHER

|$35

205-54-00200

SHIM ASS'Y

29

SHIM, 1.0MM

30

SHIM, 0.5MM

31

203-54-32260

STOPPER

31

203-54-32260

STOPPER

32

209-54-12820

FELT

33

209-54-12771

FELT

34

209-54-12780

FELT

35

209-54-12790

FELT

36

209-54-12810

FELT

37

209-54-31380

FELT

38

209-54-31390

FELT

39

209-54-31410

FELT

40

04431-30000

PLATE
