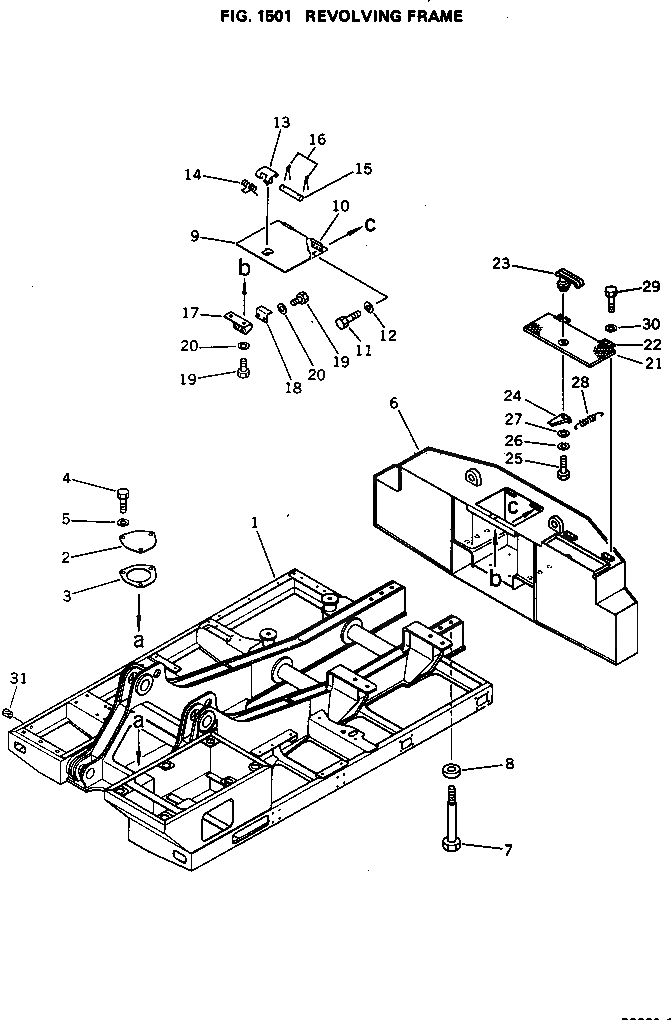

Запчасти Komatsu PC650-1 ОСНОВНАЯ РАМА ОСНОВНАЯ РАМА И КАБИНА

1

209-46-11112

FRAME

1

209-46-11111

FRAME

2

208-30-11850

COVER

3

208-30-11860

GASKET

4

01010-51225

BOLT

5

01643-31232

WASHER

6

209-46-11182

WEIGHT

7

209-46-11191

BOLT

8

209-46-11210

SPACER

9

209-46-11222

COVER

9

209-46-11221

COVER

10

203-54-22470

HINGE (WELDED)

11

01010-51225

BOLT

12

01643-31232

WASHER

13

09461-00021

LEVER

14

09461-00023

SPRING

15

09461-00022

PIN

16

04050-13018

PIN,COTTER

17

208-54-12540

BRACKET

18

208-54-12550

PLATE

19

01010-51020

BOLT

20

01643-31032

WASHER

21

209-46-11240

COVER

22

203-54-22470

HINGE (WELDED)

23

21T-54-12310

HANDLE,LOCK

24

21T-54-12330

PLATE

25

01010-50820

BOLT

26

01602-20825

WASHER,SPRING

27

01643-30823

WASHER

28

135-43-14520

SPRING

29

01010-51225

BOLT

30

01643-31232

WASHER

31

07049-01215

PLUG
