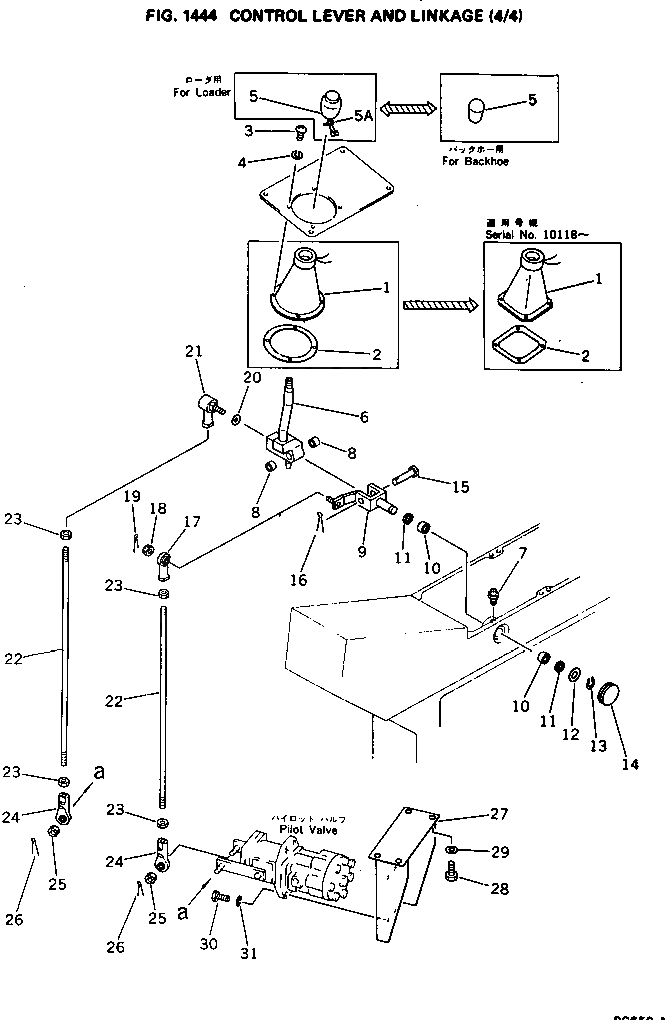

Запчасти Komatsu PC650-1 РЫЧАГ УПРАВЛ-Я И МЕХАНИЗМ (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

209-43-13421

BELLOWS

1

209-43-13420

BELLOWS

2

209-43-13460

PLATE

2

21T-43-11160

PLATE

3

01220-40410

SCREW

4

01601-20410

WASHER,SPRING

5

209-43-13442

SWITCH,(FOR LOADER)

5

209-43-13441

SWITCH,(FOR LOADER)

5

209-43-13440

SWITCH,(FOR LOADER)

5

205-43-62570

KNOB,(FOR BACKHOE)

5A

08034-00414

BAND

6

209-43-13120

LEVER,R.H.

7

07020-00000

FITTING,GREASE

8

203-43-31420

BUSHING

9

209-43-13150

YOKE

10

06120-01612

BEARING

11

06122-01603

SEAL,BEARING

12

01641-21626

WASHER

13

04064-01610

RING,SNAP

14

207-43-13610

CAP

15

430-44-22220

PIN

16

04050-14022

PIN,COTTER

17

04250-41056

END,ROD

18

01593-11008

NUT

19

04050-12018

PIN,COTTER

20

01643-31032

WASHER

21

04256-01018

JOINT

22

04245-41060

ROD

23

01582-11008

NUT

24

203-43-31450

END,ROD

25

01593-11008

NUT

26

04050-12018

PIN,COTTER

27

209-43-13281

BRACKET

28

01010-51225

BOLT

29

01643-31232

WASHER

30

01010-50825

BOLT

31

01602-20825

WASHER,SPRING
