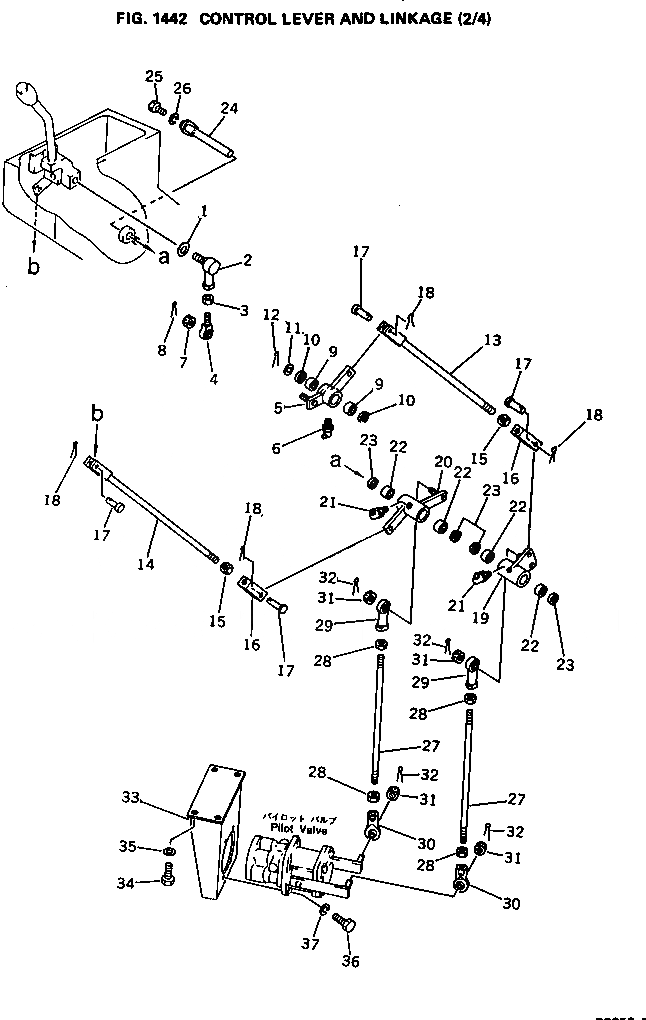

Запчасти Komatsu PC650-1 РЫЧАГ УПРАВЛ-Я И МЕХАНИЗМ (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

01643-31032

WASHER

2

04256-01018

JOINT

3

01582-11008

NUT

4

175-61-31180

END,ROD

5

209-43-13162

LEVER

5

209-43-13161

LEVER

6

07020-00675

FITTING,GREASE

7

01593-11008

NUT

8

04050-12018

PIN,COTTER

9

06120-01612

BEARING

10

06122-01603

SEAL,BEARING

11

01641-21626

WASHER

12

04050-14025

PIN,COTTER

13

04244-51027

ROD

14

04244-51036

ROD

15

01582-11008

NUT

16

04211-21055

YOKE

17

04205-11030

PIN

18

04050-13015

PIN,COTTER

19

209-43-13182

LEVER

19

209-43-13181

LEVER

20

209-43-13171

LEVER

21

07020-00900

FITTING,GREASE

22

06120-01612

BEARING

23

06122-01603

SEAL,BEARING

24

209-43-13190

PIN

25

01010-50820

BOLT

26

01602-20825

WASHER,SPRING

27

04245-41026

ROD

28

01582-11008

NUT

29

04250-41056

END,ROD

30

203-43-31450

END,ROD

31

01593-11008

NUT

32

04050-12018

PIN,COTTER

33

209-43-13281

BRACKET

34

01010-51225

BOLT

35

01643-31232

WASHER

36

01010-50825

BOLT

37

01602-20825

WASHER,SPRING
