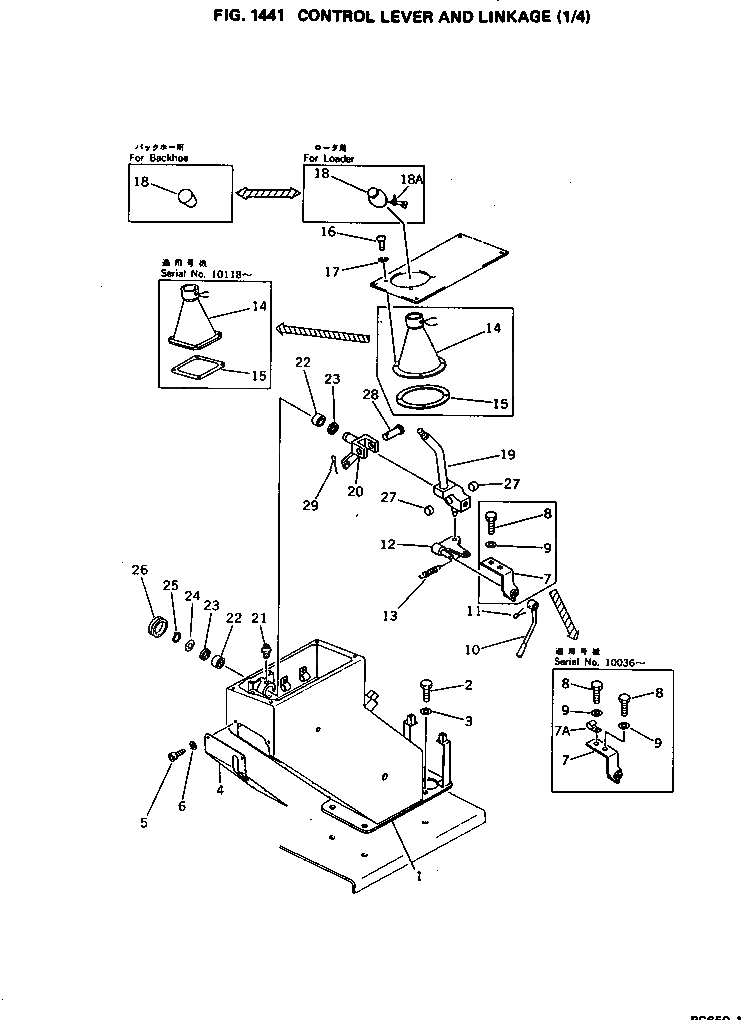

Запчасти Komatsu PC650-1 РЫЧАГ УПРАВЛ-Я И МЕХАНИЗМ (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

209-06-11122

STAND,L.H.

2

01010-51225

BOLT

3

01643-31232

WASHER

4

209-06-11171

COVER

5

21T-06-13620

BOLT

6

21T-06-13560

WASHER

7

209-43-13210

BRACKET

7A

08036-10814

CLIP

7A

08036-40814

CLIP

8

01010-50820

BOLT

9

01643-30823

WASHER

10

209-43-13230

LEVER

11

04050-14030

PIN,COTTER

12

209-43-13220

LEVER

13

203-43-21370

SPRING

14

209-43-13421

BELLOWS

14

209-43-13420

BELLOWS

15

209-43-13460

PLATE

15

21T-43-11160

PLATE

16

01220-40410

SCREW

17

01601-20410

WASHER,SPRING

18

209-43-13442

SWITCH,(FOR LOADER)

18

209-43-13441

SWITCH,(FOR LOADER)

18

209-43-13440

SWITCH,(FOR LOADER)

18

205-43-62570

KNOB,(FOR LOADER)

18A

08034-00414

BAND

19

209-43-13111

LEVER,L.H.

20

209-43-13141

YOKE

21

07020-00000

FITTING,GREASE

22

06120-01612

BEARING

23

06122-01603

SEAL,BEARING

24

01641-21626

WASHER

25

04064-01610

RING,SNAP

26

207-43-13610

CAP

27

203-43-31420

BUSHING

28

430-44-22220

PIN

29

04050-14022

PIN,COTTER
