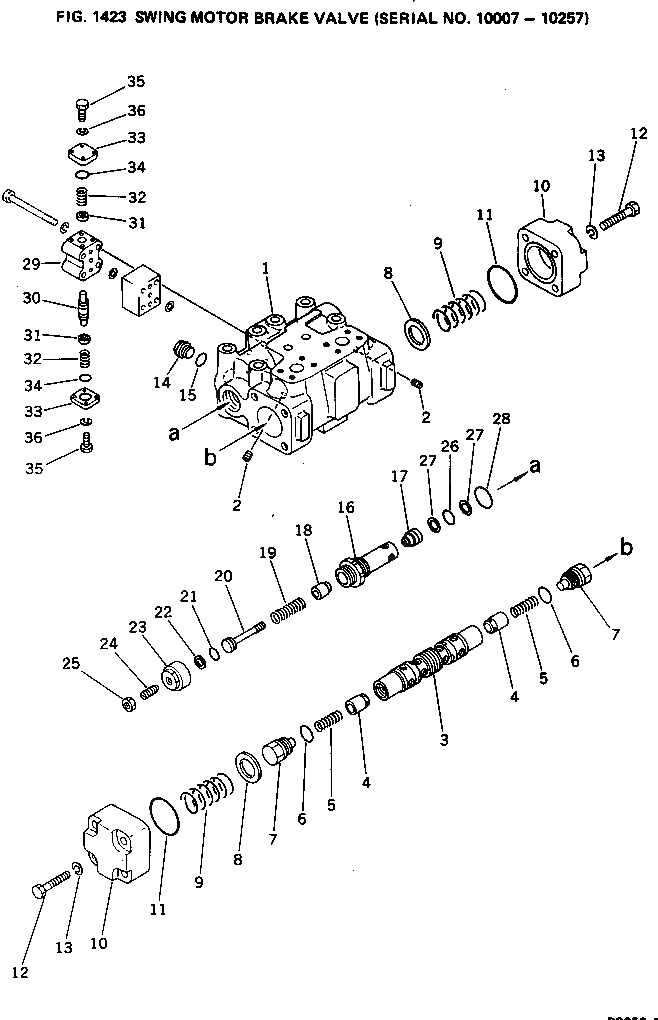

Запчасти Komatsu PC650-1 МОТОР ПОВОРОТА ТОРМОЗНОЙ КЛАПАН(№7-7) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-01705

MOTOR ASS'Y

|$1

706-77-01704

MOTOR ASS'Y

|$2

706-77-01703

MOTOR ASS'Y

|$3

706-77-01702

MOTOR ASS'Y

|$4

706-77-71405

BRAKE VALVE ASS'Y

|$5

706-77-71404

BRAKE VALVE ASS'Y

|$6

706-77-71403

BRAKE VALVE ASS'Y

|$7

706-77-71402

BRAKE VALVE ASS'Y

|$8

BODY,VALVE

1

BODY,VALVE

2

SCREW

3

SPOOL

3

SPOOL

4

701-21-32130

VALVE

5

701-20-63120

SPRING

6

07002-13034

O-RING

7

706-77-71161

PLUG

8

706-77-71150

PLUG

9

706-77-71170

SPRING

10

706-77-71130

FLANGE

11

07000-12070

O-RING

12

01010-51470

BOLT

13

01602-21442

WASHER,SPRING

14

700-22-11370

PLUG

15

07002-12434

O-RING

|$25

706-77-75300

RELIEF VALVE ASS'Y

16

SLEEVE

17

SEAT,VALVE

18

VALVE

19

SPRING

20

PISTON

21

O-RING

22

RING

23

PLUG

24

SCREW

25

NUT

26

07000-23022

O-RING

27

07001-03022

RING

28

07002-13634

O-RING

|$39

706-77-77200

SHUTTLE VALVE A.

29

BODY,VALVE

30

SPOOL

31

706-73-77140

PLATE

32

706-75-77150

SPRING

33

706-75-72750

PLATE

34

07000-12021

O-RING

35

01010-60618

BOLT

36

01602-20619

WASHER,SPRING
