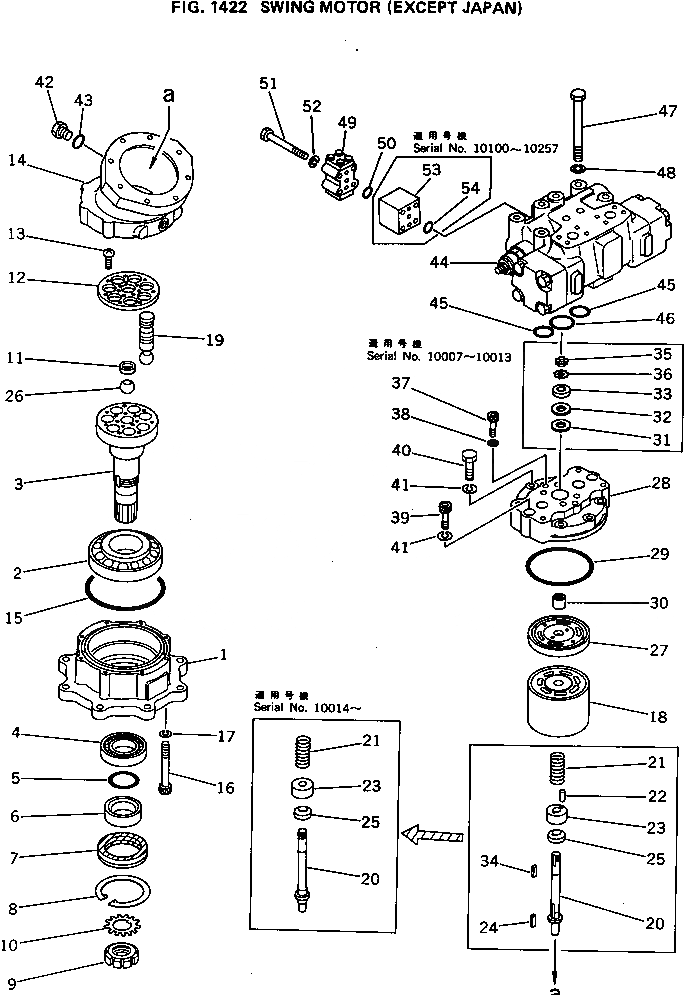

Запчасти Komatsu PC650-1 МОТОР ПОВОРОТА (КРОМЕ ЯПОН.)(№7-7) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-01705

MOTOR ASS'Y

|$1

706-77-01704

MOTOR ASS'Y

|$2

706-77-01703

MOTOR ASS'Y

|$3

706-77-01702

MOTOR ASS'Y

|$4

706-77-41001

MOTOR ASS'Y

|$5

706-77-41000

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING (KIT)

3

SHAFT,DRIVE (KIT)

4

BEARING

5

O-RING (KIT)

6

RING

7

SEAL,OIL (KIT)

7

SEAL,OIL

8

RING,SNAP

8

RING,SNAP

9

NUT

10

WASHER,LOCK (KIT)

11

HOLDER (KIT)

12

RETAINER (KIT)

13

SCREW (KIT)

14

CASE,PUMP

15

O-RING (KIT)

16

BOLT

17

WASHER,SPRING

18

BLOCK,CYLINDER (KIT)

18

BLOCK,CYLINDER

19

PISTON SUB ASS'Y (KIT)

20

SHAFT,CENTER (KIT)

20

SHAFT,CENTER

21

SPRING (KIT)

21

SPRING

22

PIN,DOWEL

23

PLATE,THRUST (KIT)

23

PLATE,THRUST

24

KEY

25

SEAT,BALL (KIT)

25

SEAT,BALL

26

BALL,CENTER (KIT)

26

BALL,CENTER

27

PLATE,VALVE

27

PLATE,VALVE

28

COVER,END

28

COVER,END

29

O-RING (KIT)

30

BEARING

31

PLATE

32

BEARING

33

HOLDER,BEARING

34

KEY

35

NUT

36

LOCK

37

BOLT (KIT)

38

GASKET,SEAL (KIT)

39

BOLT

40

BOLT

41

WASHER,SPRING

42

07040-12012

PLUG

43

07002-02034

O-RING

44

706-77-71405

BRAKE VALVE ASS'Y

44

706-77-71404

BRAKE VALVE ASS'Y

44

706-77-71403

BRAKE VALVE ASS'Y

44

706-77-71402

BRAKE VALVE ASS'Y

45

07000-13035

O-RING

46

07000-02055

O-RING

47

01011-51455

BOLT

48

01602-21442

WASHER,SPRING

49

706-77-77200

SHUTTLE VALVE A.

50

07000-12011

O-RING

51

706-77-77150

BOLT

51

01010-50855

BOLT

52

01602-20825

WASHER,SPRING

53

706-77-77140

PLATE

54

07000-02021

O-RING

1K

706-98-05010

DRIVE SHAFT KIT,(EXCEPT JAPAN)

2

BEARING

3

SHAFT,DRIVE

5

O-RING

7

SEAL,OIL

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK,CYLINDER

19

PISTON SUB ASS'Y

20

SHAFT,CENTER

21

SPRING

23

PLATE,THRUST

25

SEAT,CENTER

26

BALL,CENTER

29

O-RING

37

BOLT

38

GASKET,SEAL
