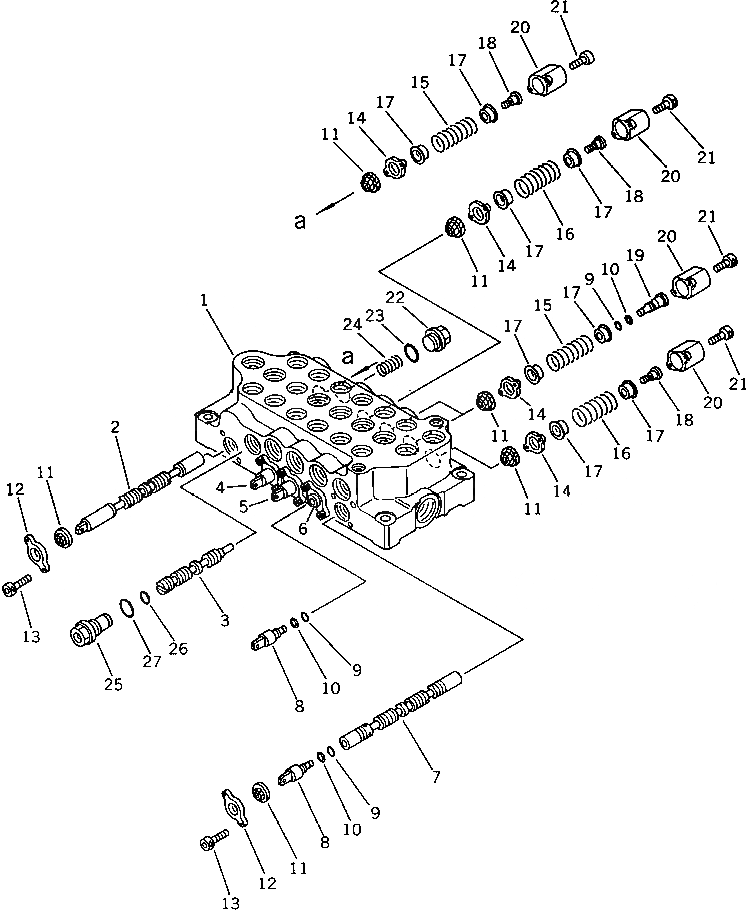

Запчасти Komatsu PC60U-5 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) ГИДРАВЛИКА

|1

709-26-11203

VALVE ASS'Y,R.H.

|1

709-26-11202

VALVE ASS'Y,R.H.

|1

709-26-11201

VALVE ASS'Y,R.H.

1

BODY,VALVE

|1

BODY,VALVE

2

SPOOL,R.H. TRAVEL

3

SPOOL,STRAIGHT TRAVEL

4

SPOOL,BUCKET

5

SPOOL,BOOM LOW

6

SPOOL,BOOM SWING

7

SPOOL,ARM HIGH

8

709-25-11340

JOINT

9

07000-11003

O-RING

10

07001-01003

RING,BACK-UP

11

709-25-11290

SEAL

12

709-25-11320

PLATE

13

01252-30616

BOLT

14

709-25-11310

PLATE

15

700-23-13130

SPRING

16

700-22-11311

SPRING

17

700-22-11291

RETAINER

18

700-22-11321

PLUG

19

700-25-11330

PLUG

20

700-22-11331

COVER

21

01252-30616

BOLT

22

709-25-11430

PLUG

23

07002-02434

O-RING

24

709-25-11410

SPRING

25

709-25-11460

NIPPLE

26

07000-02015

O-RING

27

07002-02434

O-RING
