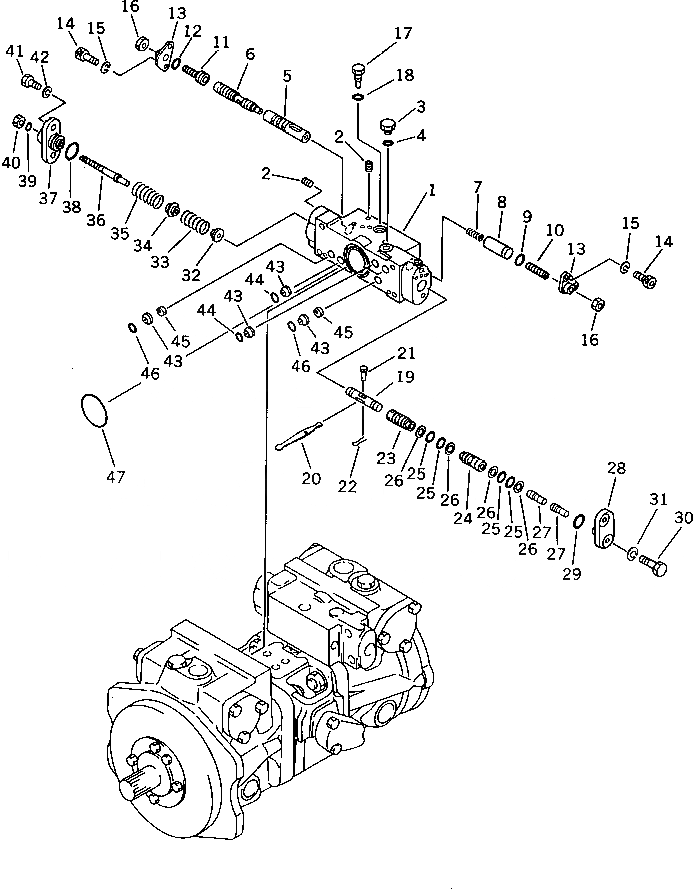

Запчасти Komatsu PC60U-5 СЕРВОКЛАПАН¤ ПЕРЕДН. ГИДРАВЛИКА

|1

708-21-01010

PUMP ASS'Y,(HPV35+35)

|1

708-21-10601

PUMP ASS'Y,(HPV35+35)

|1

708-21-15901

SERVO VALVE ASS'Y,FRONT

|1

BODY ASS'Y

1

BODY

2

PLUG

3

PLUG

4

O-RING

5

SLEEVE

6

SPOOL

7

SPRING

8

SPACER

9

O-RING

10

SCREW

11

PLUG

12

O-RING

13

COVER

14

708-25-15320

BOLT

15

01602-20619

WASHER,SPRING

16

NUT

17

PLUG

18

O-RING

19

PISTON

20

ARM

21

PIN

22

PIN,COTTER

23

SLEEVE

24

SLEEVE

25

O-RING

26

RING,BACK-UP

27

PISTON

28

708-21-19240

COVER

29

07000-02014

O-RING

30

01010-50825

BOLT

31

01602-20825

WASHER,SPRING

32

SEAT

33

SPRING

34

SEAT

35

SPRING

36

ROD

37

COVER

38

07000-02020

O-RING

39

07002-00823

O-RING

40

NUT

41

01010-30820

BOLT

42

01602-00825

WASHER,SPRING

43

720-68-11920

FILTER

44

07000-12010

O-RING

45

708-21-19150

ORIFICE

46

07000-02010

O-RING

47

07000-03048

O-RING
