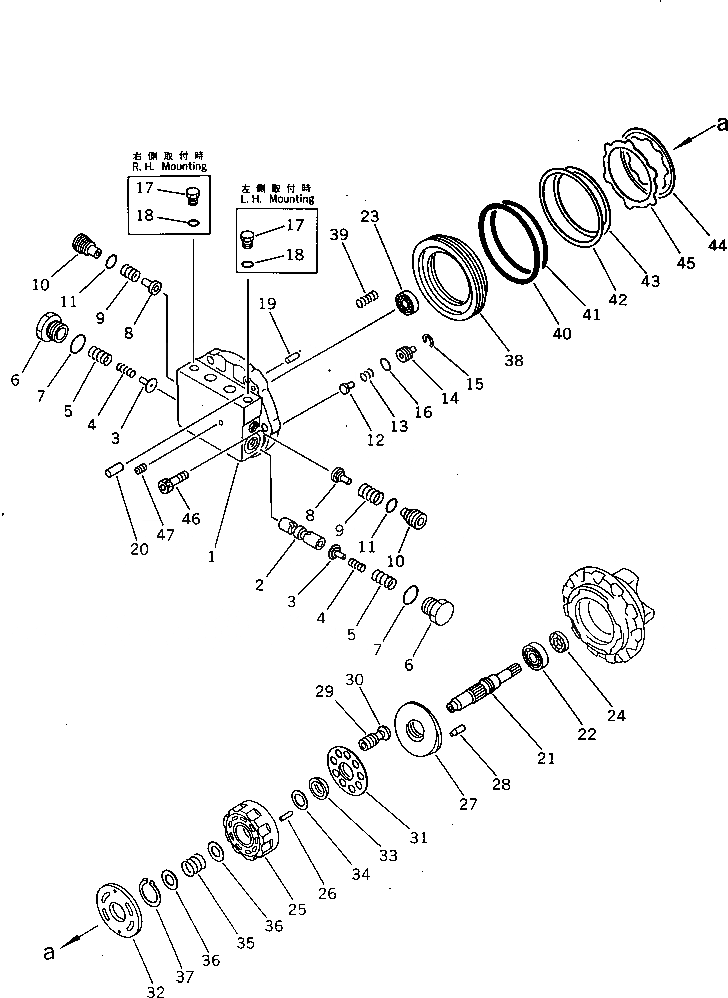

Запчасти Komatsu PC60U-5 МОТОР ХОДА (/) ГИДРАВЛИКА

|1

201-60-58101

TRAVEL MOTOR ASS'Y

|1

201-60-58100

TRAVEL MOTOR ASS'Y

|1

TZ880A210100-A

FLANGE KIT

1

FLANGE,REAR

1A

TZGM1-8

PLUG

1B

TZMB700-050

PLUG

1C

TZ850A0006-00

PLATE¤ NAME

2

SPOOL

3

STOPPER

4

SPRING

5

TZ860A2056-00

SPRING

6

TZ860A2051-00

PLUG

7

TZJB2401P26-9

O-RING (KIT)

8

TZ860A2054-01

VALVE

9

TZ860A2055-01

SPRING

10

TZ860A2053-01

PLUG

11

07000-12016

O-RING (KIT)

12

TZ860A2019-00

VALVE

13

TZ860A2020-01

SPRING

14

TZ860A2018-00

SEAT,VALVE

15

TZ100A2022-00

RING

16

07000-11009

O-RING (KIT)

17

TZ100A2021-00

PLUG

18

07002-02034

O-RING (KIT)

19

TZPP0040-10

PIN,DOWEL

20

TZPP0080-25

PIN,DOWEL

21

TZ880A2002-00

SHAFT

22

TZ880A2029-00

BEARING,BALL

23

06000-06203

BEARING,BALL

24

TZ02204210

SEAL,OIL (KIT)

25

TZ880A2004-00

BLOCK,CYLINDER

26

TZNR025168

ROLLER,NEEDLE

27

TZ850A2003-01

PLATE,SWASH

28

TZ800A2017-00

PIN

|29

TZ860A2105-01

PISTON KIT

|29

PISTON SHOE ASS'Y

29

PISTON

30

SHOE,PISTON

31

TZ850A2007-01

PLATE,RETAINER

32

TZ860A2009-01

PLATE,TIMING

33

TZ880A2008-00

BALL,THRUST

34

TZ880A2011-00

WASHER

35

TZ880A2014-00

SPRING

36

TZ880A2010-00

WASHER

37

TZIRT-04218

RING,SNAP

38

TZ880A2012-00

PISTON

39

TZ880A2013-00

SPRING

40

07000-12140

O-RING (KIT)

41

TZOWG13127

O-RING (KIT)

42

TZ002BG140

RING,BACK-UP (KIT)

43

TZ002WG028

RING,BACK-UP (KIT)

44

TZ800A2015-00

PLATE

45

TZ800A2016-00

PLATE

46

01252-31030

BOLT
