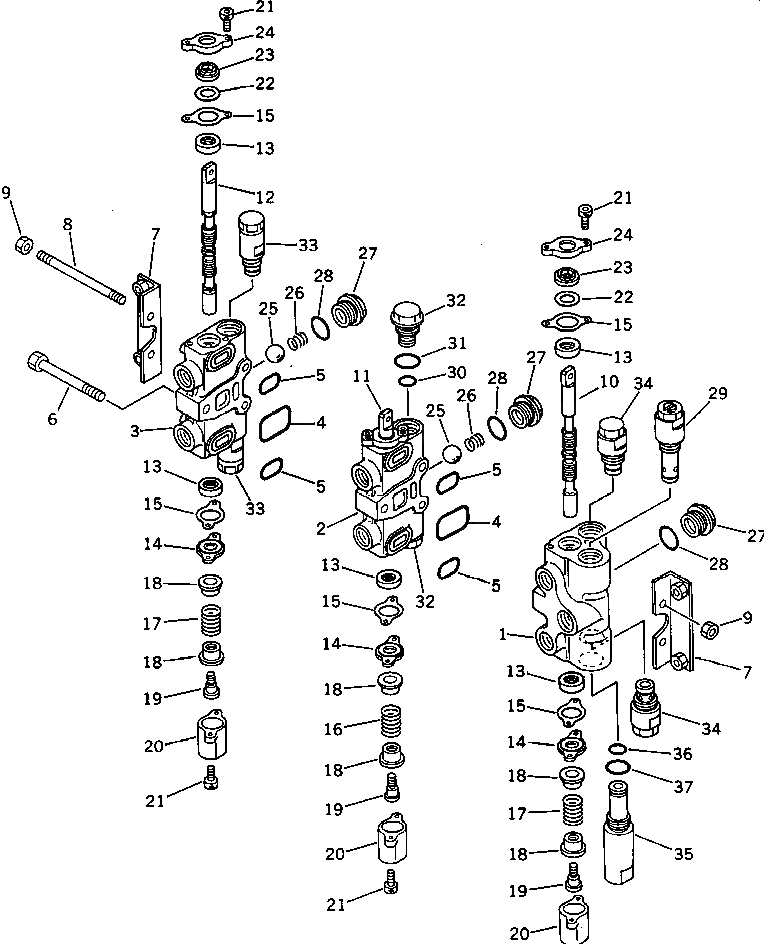

Запчасти Komatsu PC60U-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-23-46001

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-13140

BOLT

7

700-26-11170

ANGLE

8

700-24-13110

STUD

9

01580-10806

NUT

10

SPOOL,L.H. TRAVEL

11

SPOOL,BOOM HIGH

12

SPOOL,ARM

13

700-22-11252

U-PACKING

14

700-22-11281

PLATE

15

700-22-11420

GASKET

16

700-22-11311

SPRING

17

700-23-13130

SPRING

18

700-22-11290

RETAINER

19

700-22-11320

PLUG

20

700-22-11331

COVER

21

01252-30616

BOLT

22

700-22-11430

COLLAR

23

700-22-11261

SEAL,DUST

24

700-22-11270

PLATE

25

700-22-12340

BALL

26

700-22-12350

SPRING

27

700-22-11351

PLUG

28

07002-12434

O-RING

29

700-20-55001

VALVE ASS'Y,MAIN RELIEF

30

07002-02434

O-RING

31

07002-02434

O-RING

32

700-22-11360

PLUG

33

700-20-66001

VALVE ASS'Y,ARM

34

700-20-61002

VALVE ASS'Y,L.H. TRAVEL

35

700-23-13150

NIPPLE

36

07000-12014

O-RING

37

07002-02434

O-RING
