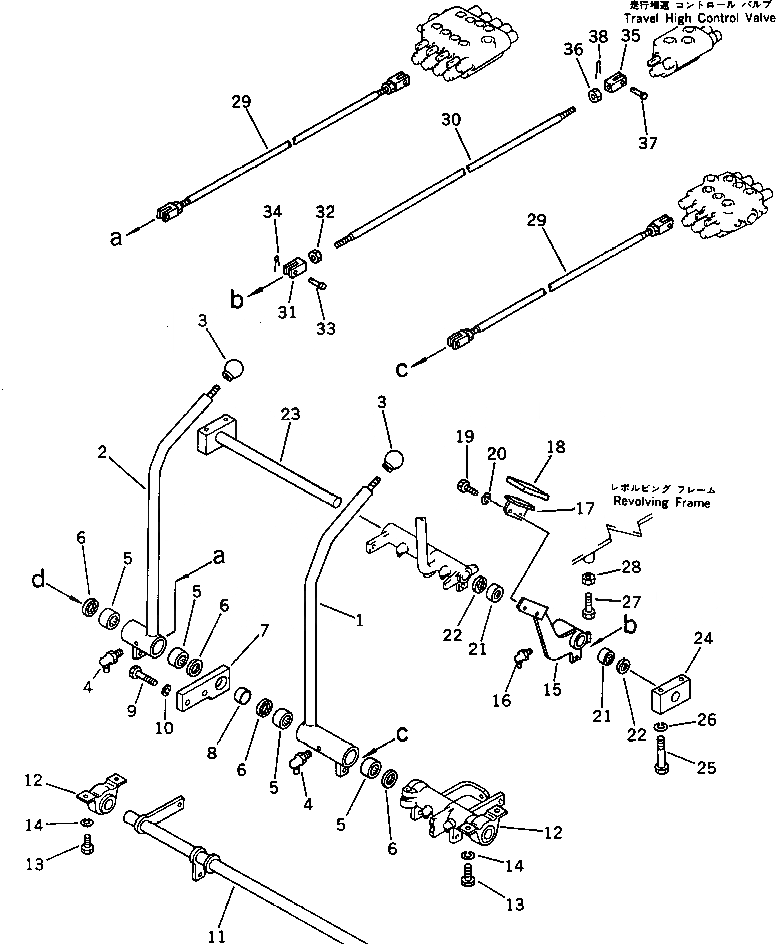

Запчасти Komatsu PC60U-3 РЫЧАГ УПРАВЛ-Я ХОДОМ ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

1

201-43-38120

LEVER,L.H.

2

201-43-38130

LEVER,R.H.

3

203-43-21120

KNOB

4

07020-00900

FITTING,GREASE

5

06120-02520

BEARING,NEEDLE

6

06122-02504

SEAL,BEARING

|7

201-43-00060

PLATE ASS'Y

7

PLATE

8

201-43-31170

BUSHING

9

01010-31040

BOLT

10

01602-01030

WASHER,SPRING

11

201-43-31180

SHAFT

12

06125-02557

BEARING

13

01010-31020

BOLT

14

01602-01030

WASHER,SPRING

15

201-43-38140

LEVER

16

07020-00900

FITTING,GREASE

17

201-43-38150

PEDAL

18

20D-43-14370

CAP

19

01010-30825

BOLT

20

01602-00825

WASHER,SPRING

21

06120-02520

BEARING,NEEDLE

22

06122-02504

SEAL,BEARING

23

201-43-31190

SHAFT

24

201-43-21290

BRACKET

25

01010-31060

BOLT

26

01602-01030

WASHER,SPRING

27

01010-31025

BOLT

28

01580-11008

NUT

29

201-43-21510

ROD

30

201-43-31270

ROD

31

04210-21040

YOKE

32

01582-11008

NUT

33

04205-11026

PIN

34

04050-13015

PIN,COTTER

35

201-43-21370

YOKE

36

01582-11008

NUT

37

04205-10622

PIN

38

04050-11610

PIN,COTTER
