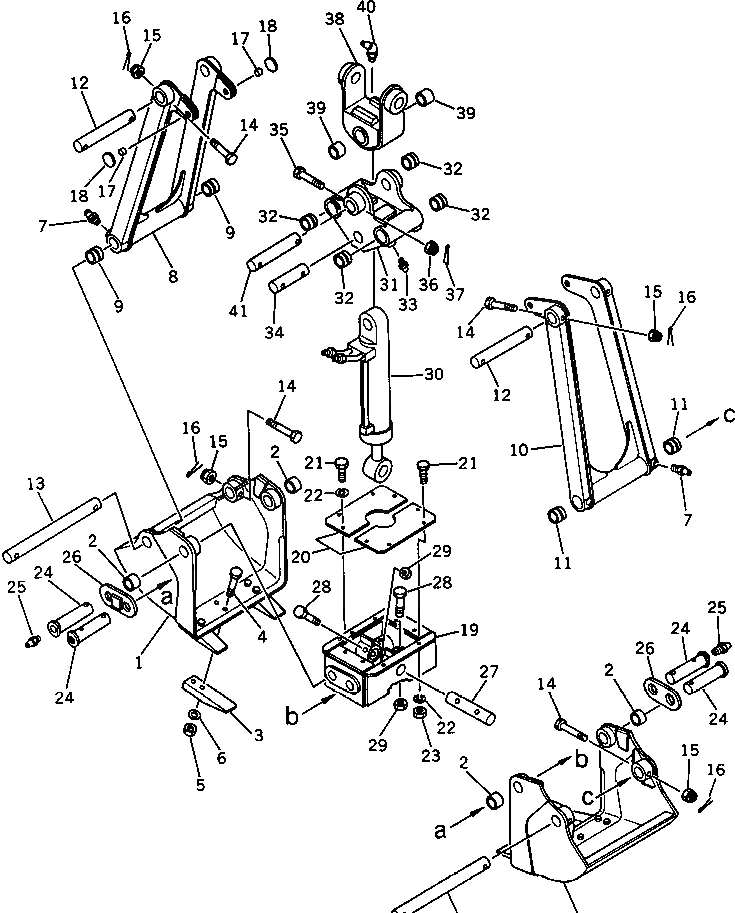

Запчасти Komatsu PC60U-3 ГРЕЙФЕРН. КОВШ¤ .M¤ (DIGGING ТИП) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

201-931-1101

CLAMSHELL ASS'Y

|$1

201-931-0110

SHELL ASS'Y

1

SHELL

2

07143-10405

BUSHING

3

201-931-1320

TOOTH

4

01050-31655

BOLT

5

01582-01613

NUT

6

01643-31645

WASHER

7

07020-00000

FITTING,GREASE

|$9

201-931-0120

ARM ASS'Y

8

ARM

9

07144-10405

BUSHING

|$12

201-931-0130

ARM ASS'Y

10

ARM

11

07144-10405

BUSHING

12

201-931-1390

PIN

13

201-931-1410

PIN

14

01013-31605

BOLT

15

01590-01619

NUT

16

04050-04030

PIN,COTTER

17

201-931-1420

PIN

18

202-931-1370

PLATE (WELDED)

19

201-931-1310

FRAME

20

201-931-1350

COVER

21

01010-31025

BOLT

22

01602-01030

WASHER,SPRING

23

01580-01008

NUT

24

201-931-1340

PIN

25

07020-00000

FITTING,GREASE

26

201-931-1330

PLATE

27

201-931-1370

PIN

28

01011-31660

BOLT

29

01598-01617

NUT

30

201-931-1200

CYLINDER ASS'Y

|$34

201-931-0140

FRAME ASS'Y

31

FRAME

32

07144-10405

BUSHING

33

07020-00000

FITTING,GREASE

34

201-931-1360

PIN

35

01013-31605

BOLT

36

01590-01619

NUT

37

04050-04030

PIN,COTTER

|$42

201-931-0150

HANGER ASS'Y

38

HANGER

39

07143-10505

BUSHING

40

07020-00675

FITTING,GREASE

41

201-931-1380

PIN
