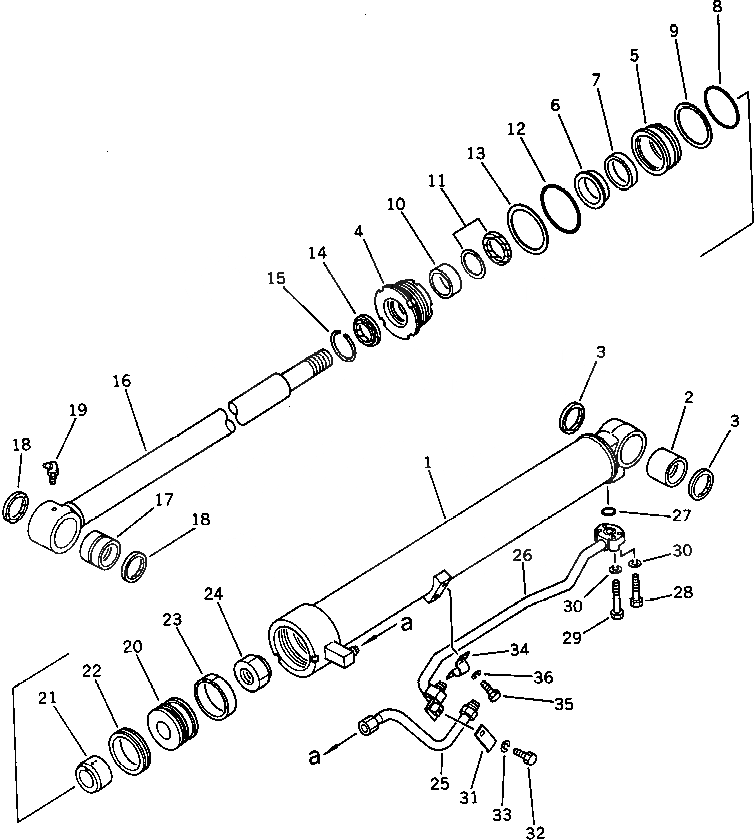

Запчасти Komatsu PC60U-3 ЦИЛИНДР СТРЕЛЫ УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

201-63-43300

BOOM CYLINDER ASS'Y

1

201-63-43340

CYLINDER

2

07143-10606

BUSHING

3

07145-00060

SEAL,DUST

4

707-29-11570

HEAD,CYLINDER

|$5

707-71-91010

RING ASS'Y

5

707-71-30710

COLLAR

6

707-71-30720

COLLAR

7

201-63-43250

RING,CUSHION

8

07000-12105

O-RING

9

07146-02106

RING,BACK-UP

10

07177-06530

BUSHING

11

707-51-65211

PACKING,ROD

12

07000-12115

O-RING

13

20D-63-32290

RING,BACK-UP

14

144-63-92170

SEAL,DUST

15

07179-00088

RING,SNAP

16

201-63-43320

ROD,PISTON

17

07144-10606

BUSHING

18

07145-00060

SEAL,DUST

19

07020-00675

FITTING,GREASE

20

707-36-11580

PISTON

21

707-71-50750

PLUNGER

22

707-44-11080

RING,PISTON

23

07155-01125

RING,WEAR

24

07165-14547

NUT

25

201-63-43390

TUBE

26

201-63-43180

TUBE

27

07000-13025

O-RING

28

01010-50835

BOLT

29

01010-50845

BOLT

30

01602-20825

WASHER,SPRING

31

201-62-21890

CLAMP

32

01010-51025

BOLT

33

01602-21030

WASHER,SPRING

34

07282-02288

CLAMP

35

01010-51020

BOLT

36

01602-21030

WASHER,SPRING
