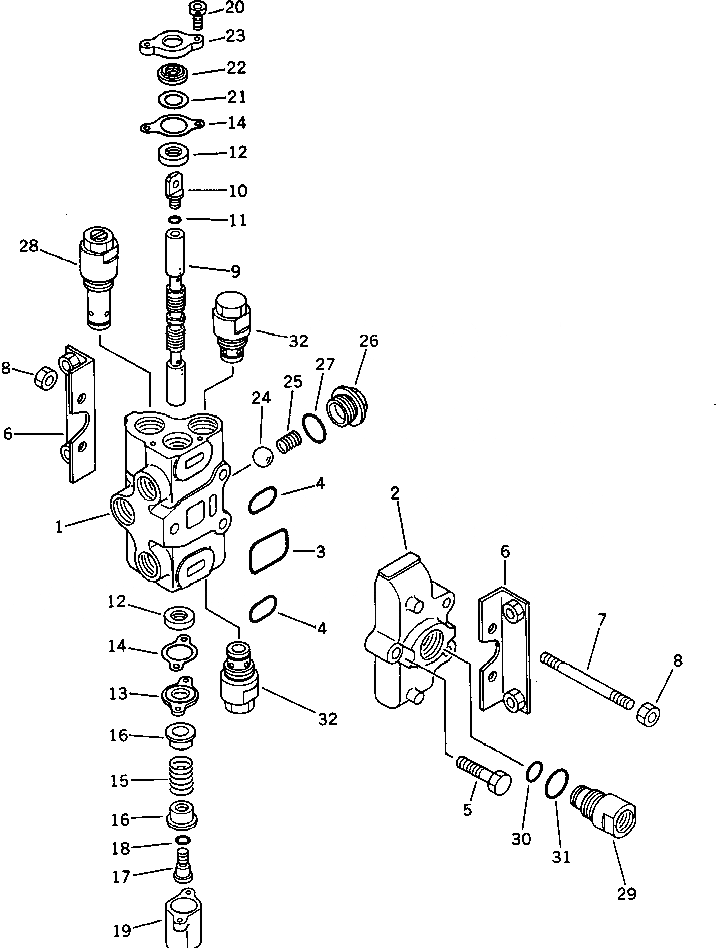

Запчасти Komatsu PC60U-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПОВОРОТН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-21-39002

VALVE ASS'Y

1

BODY,VALVE

2

COVER,VALVE

3

07000-13040

O-RING

4

700-22-11450

O-RING

5

700-21-11120

BOLT

6

700-26-11170

ANGLE

7

700-21-11110

STUD

8

01580-10806

NUT

9

SPOOL,SWING

10

700-26-11160

PLUG

11

07000-11006

O-RING

12

700-22-11252

U-PACKING

13

700-22-11281

PLATE

14

700-22-11420

GASKET

15

700-23-13130

SPRING

16

700-22-11290

RETAINER

17

700-22-11320

PLUG

18

07000-11006

O-RING

19

700-22-11331

COVER

20

01252-30616

BOLT

21

700-22-11430

COLLAR

22

700-22-11261

SEAL,DUST

23

700-22-11270

PLATE

24

700-22-12340

BALL

25

700-22-12350

SPRING

26

700-22-11351

PLUG

27

07002-12434

O-RING

28

700-26-54000

RELIEF VALVE ASS'Y

29

700-22-11390

NIPPLE

30

700-22-11410

O-RING

31

07002-02434

O-RING

32

700-20-61002

VALVE ASS'Y,SUCTION
