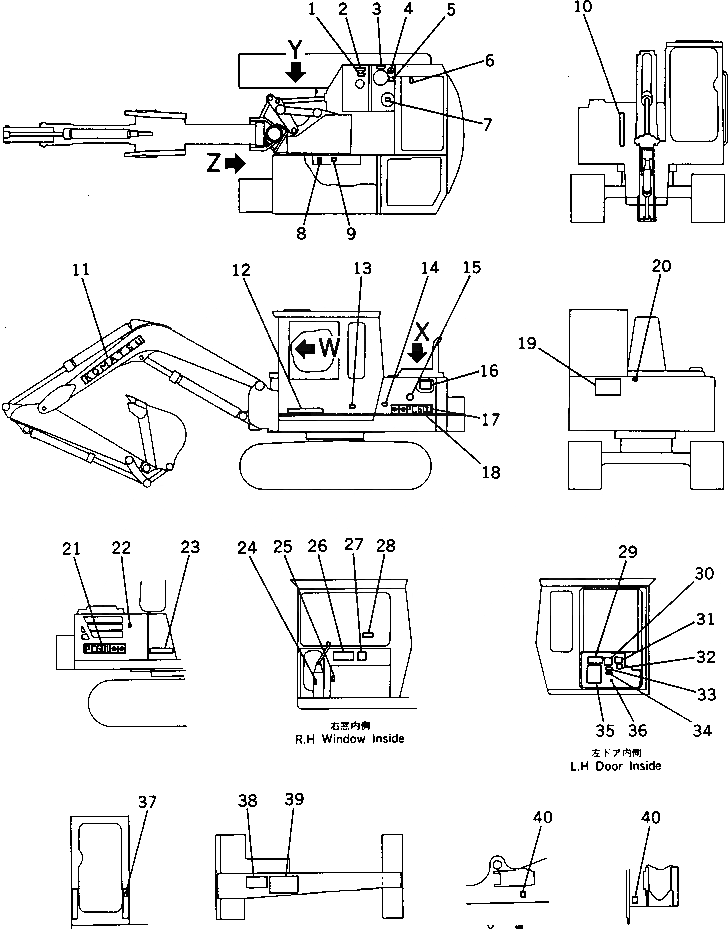

Запчасти Komatsu PC60U-3 МАРКИРОВКА МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09652-01101

PLATE, CAUTION,FUEL TANK

2

09101-00100

PLATE, INSTRUCTION,FUEL

3

203-00-21190

PLATE, INSTRUCTION,RECOMENDED HYDRAULIC OIL

4

201-54-21940

PLATE, CAUTION,HYDRAULIC OIL

5

09653-00100

PLATE, SAFETY,HYDRAULIC OIL TANK

6

09667-00100

PLATE, SAFETY,ENGINE COVER

7

09656-01080

PLATE, INSTRUCTION,FUEL TANK

8

201-98-41160

PLATE, OPERATING

9

09683-01060

PLATE, OPERATING,STARTING SWITCH

10

201-98-31160

PLATE,LEVEL GAUGE

11

09690-41000

PLATE, MARK,KOMATSU

12

09690-50450

PLATE, MARK,KOMATSU

13

09601-13060

PLATE, NAME,(LIMITED SUPPLY)

13

04418-13060

SCREW

14

201-98-41170

PLATE, SAFETY,ENGINE COVER

15

205-00-63770

PLATE

16

09641-00661

PLATE, INSTRUCTION,AIR CLEANER

17

201-98-48120

PLATE, MARK,PC60U

18

201-98-41130

LINE,STRIPE

19

09133-00100

PLATE, CAUTION,KEEP OUT OF TURNING AREA

20

201-98-41170

PLATE, SAFETY,ENGINE COVER

21

201-98-48110

PLATE, MARK,PC60U

22

203-00-31120

PLATE, INSTRUCTION,LEVEL, HYDRAULIC OIL

23

09690-50315

PLATE, MARK,KOMATSU

24

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

25

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

26

202-00-48120

PLATE, OPERATING

27

201-54-28540

PLATE, CAUTION

28

205-00-52230

PLATE, SAFETY

29

09657-00110

PLATE, SAFETY,TRACK TENSION

30

201-98-48140

PLATE, DATA

31

09132-00100

PLATE, SAFETY

32

09173-00100

PLATE, SAFETY,INSPECTION

33

09651-00100

PLATE, SAFETY,BEFORE OPERATING

34

09131-00100

PLATE, SAFETY,SWING LOCK LEVER

35

201-98-38120

CHART, OIL

36

201-54-48210

COVER

36

205-54-72350

CLIP ASS'Y

37

201-54-21970

PLATE, CAUTION,FRONT WINDOW

38

09668-00100

PLATE, SAFETY,RADIATOR CAP

39

09650-01103

PLATE, INSTRUCTION,RADIATOR

40

201-54-28550

PLATE, CAUTION
