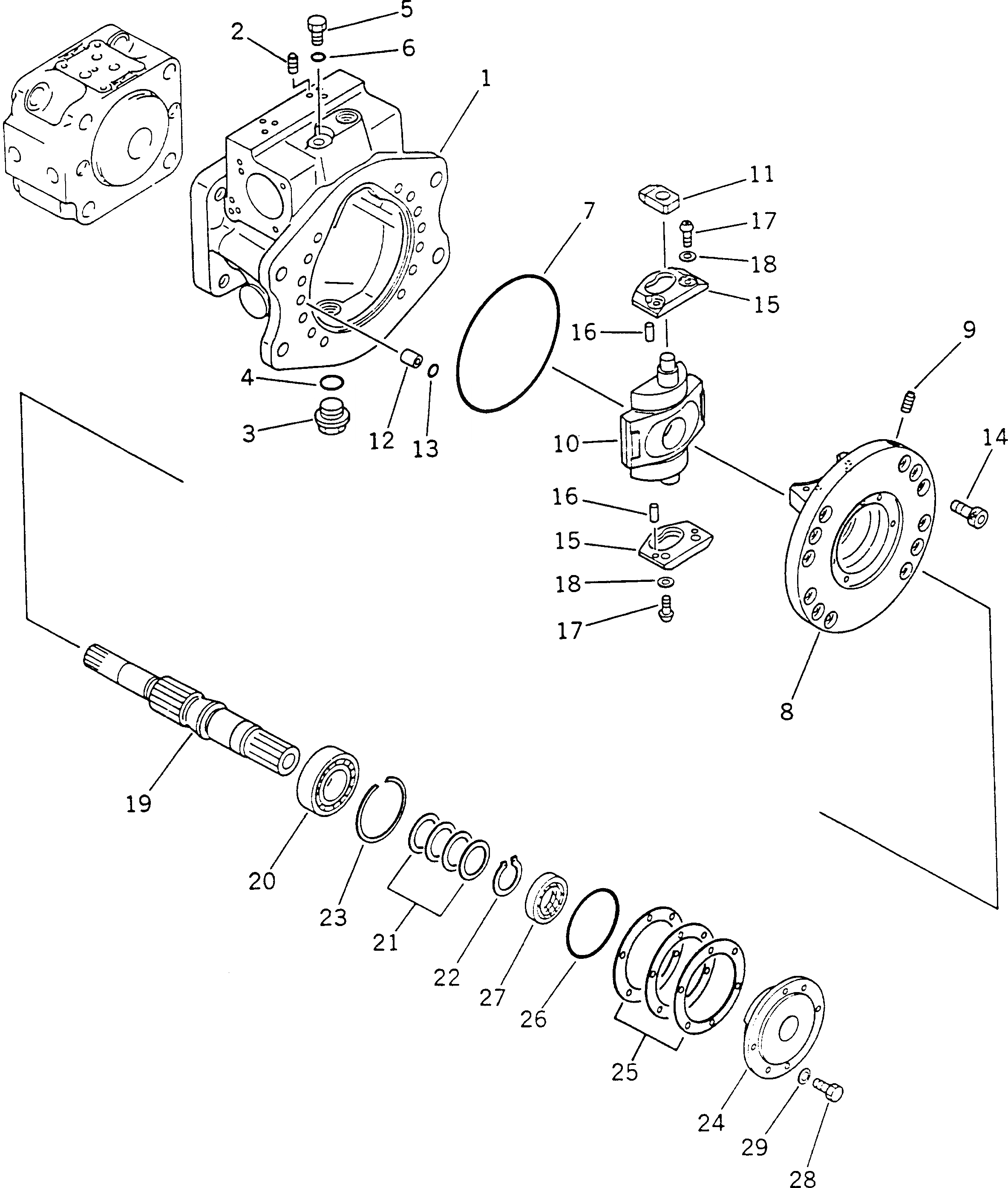

Запчасти Komatsu PC60L-6 ГИДР. НАСОС. (ПЕРЕДН. /) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-21-04033

PUMP ASS'Y,(HPV35+35)

|1

708-21-04032

PUMP ASS'Y,(HPV35+35)

|1

708-21-04031

PUMP ASS'Y,(HPV35+35)

|1

708-21-04113

PUMP SUB ASS'Y

|1

708-21-04112

PUMP SUB ASS'Y

|1

708-21-04111

PUMP SUB ASS'Y

|1

708-21-00010

CASE ASS'Y,FRONT

1

CASE,FRONT

2

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

5

720-68-19870

PLUG

6

07002-01223

O-RING

7

07000-02145

O-RING

|8

708-21-00030

CRADLE ASS'Y,FRONT

|8

708-21-00100

CRADLE SUB ASS'Y,FRONT

8

CRADLE

9

PLUG

10

708-21-13410

CAM,CAM

11

708-21-14220

SLIDER

12

708-21-12330

JOINT

13

07000-12012

O-RING

|13

708-2E-11790

O-RING

14

708-21-12380

BOLT

15

708-21-12340

PLATE

16

708-23-12370

PIN

17

708-21-12350

SCREW

18

708-21-12360

WASHER

19

708-21-12711

SHAFT,FRONT

20

708-21-12751

BEARING

21

708-21-05010

WASHER KIT

|21

WASHER

|21

WASHER

|21

WASHER

|21

WASHER

22

708-25-22830

RING,SNAP

23

708-21-12660

RING

24

708-21-12852

HOUSING

25

708-21-05100

SHIM KIT

|25

SHIM

|25

SHIM

26

07000-02055

O-RING

27

708-21-12970

SEAL,OIL

28

01010-30616

BOLT

29

01643-30623

WASHER
