Запчасти Komatsu PC60L-6 МАРКИРОВКА (ЯПОН.) (/) (KOMATSU PATTERN) (№8-8) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

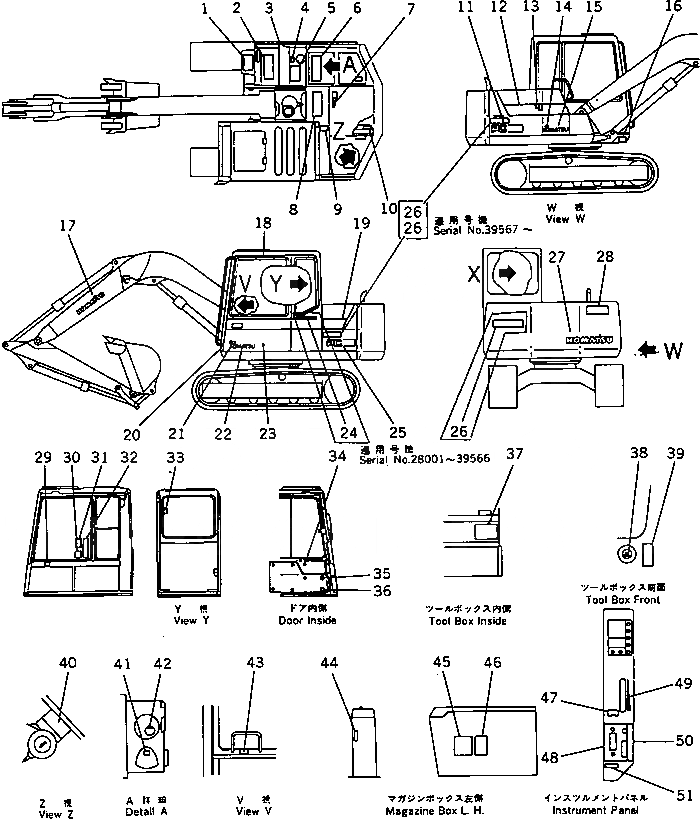

Схема запчастей Komatsu PC60L-6 - МАРКИРОВКА (ЯПОН.) (/) (KOMATSU PATTERN) (№8-8) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

201-00-61190

PLATE¤ MARK,LINE

4

09652-01121

PLATE¤ CAUTION,FUEL

5

203-00-51170

SEAT,NONSKID

6

154-54-23260

SEAT,NONSKID

7

09667-00100

PLATE¤ SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

10

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

11

201-00-67111

PLATE¤ MARK,PC60L

|11

201-00-67110

PLATE¤ MARK,PC60L

12

201-00-61180

PLATE¤ MARK,LINE

13

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

14

09694-50125

PLATE¤ MARK,SYMBOL

15

09690-C0315

PLATE¤ MARK,KOMATSU

|15

09690-50400

PLATE¤ MARK,KOMATSU

16

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|16

04418-13060

SCREW

17

09690-B0450

PLATE¤ MARK,KOMATSU

|17

201-00-61130

PLATE¤ MARK,KOMATSU

18

20Y-00-11350

PLATE

19

201-00-61170

PLATE¤ MARK,LINE

20

20Y-00-11490

PLATE

21

09694-50125

PLATE¤ MARK,SYMBOL

22

09690-C0315

PLATE¤ MARK,KOMATSU

|22

09690-50400

PLATE¤ MARK,KOMATSU

23

20Y-00-11350

PLATE

24

20Y-00-11481

PLATE¤ MARK,AVANCE

25

201-00-67111

PLATE¤ MARK,PC60L

|25

201-00-67110

PLATE¤ MARK,PC60L

26

20Y-00-11520

PLATE¤ MARK,AVANCE

|26

20Y-00-11520

PLATE¤ MARK,AVANCE

27

09690-C0630

PLATE¤ MARK,KOMATSU

|27

203-00-41131

PLATE¤ MARK,KOMATSU

28

203-00-51210

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

29

20Y-00-11310

PLATE¤ OPERATING,KOMATSU PATTERN

30

201-00-61450

PLATE¤ OPERATING,PANEL CONTROL

|30

203-00-52130

PLATE¤ OPERATING,SYMBOL MARK

31

203-00-52150

PLATE¤ CAUTION,LEAVING SEAT

32

203-00-52161

PLATE¤ CAUTION,BEFORE OPERATING

33

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

34

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

35

20Y-54-13473

COVER

36

20Y-54-14560

CLIP ASS'Y

37

201-00-61212

CHART¤ OIL

|37

201-00-61211

CHART¤ OIL

|37

201-00-61210

CHART¤ OIL

38

201-00-61380

PLATE¤ OPERATING,TOOL BOX LOCK

|38

203-00-52290

PLATE¤ OPERATING,TOOL BOX LOCK

39

201-00-61340

PLATE¤ OPERATING,TOOL BOX LOCK

|39

09685-00004

PLATE¤ OPERATING,TOOL BOX LOCK

|39

09685-00003

PLATE¤ OPERATING,TOOL BOX LOCK

40

09637-01661

PLATE¤ INSTRUCTION,AIR CLEANER

41

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

42

201-54-21940

PLATE¤ CAUTION,HYDRAULIC TANK CAP

43

203-00-52190

PLATE¤ CAUTION,WIPER MOTOR CONNECTOR

44

09685-00002

PLATE¤ OPERATING,LOCK LEVER

45

201-00-67221

PLATE¤ DATA

|45

201-00-67220

PLATE¤ DATA

46

201-00-61160

PLATE¤ CAUTION

47

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

48

201-00-61151

PLATE¤ CAUTION,PANEL

|48

201-00-61150

PLATE¤ CAUTION,PANEL

49

201-00-61230

PLATE¤ OPERATING,FUEL CONTROL

50

201-00-61240

PLATE¤ MARK,KOMATSU

51

201-00-61140

PLATE¤ OPERATING,SWING MECHANICAL BRAKE

Выбрано товаров: 67
