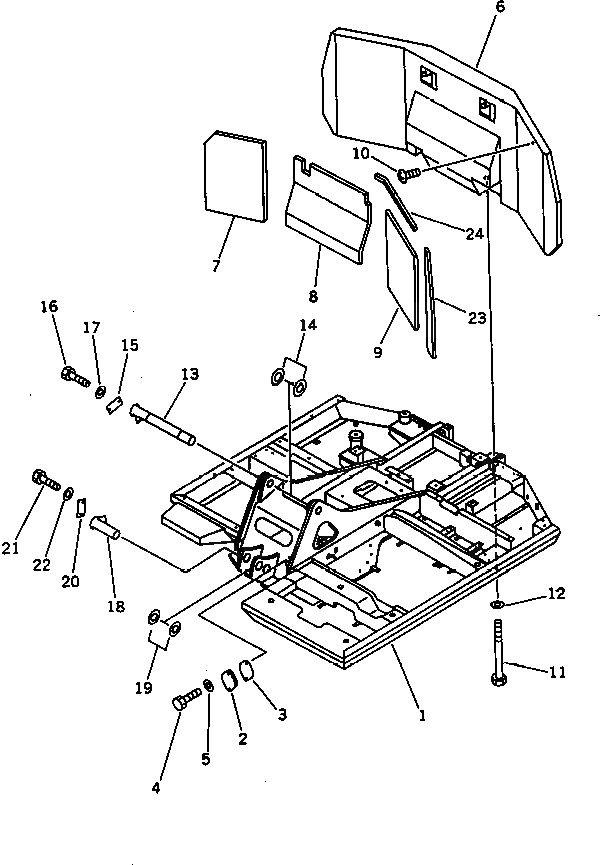

Запчасти Komatsu PC60L-6 ОСНОВНАЯ РАМА (ДЛЯ WRIST РЫЧАГ УПРАВЛ-Я)(№8-87) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

201-46-63102

REVOLVING FRAME A.

1

201-973-6791

REVOLVING FRAME A.,(FOR ATTACHMENT ADD. FILTER)

1

201-46-65201

REVOLVING FRAME A.,(WITH W/SEPARATOR, ADD/FILTER)

2

203-46-56160

COVER

3

203-46-31181

GASKET

4

01010-51230

BOLT

5

01643-31232

WASHER

6

201-46-64111

WEIGHT,COUNTER

7

201-46-62120

SHEET

8

201-46-62130

SHEET

9

201-46-62140

SHEET

10

01370-00508

SCREW

11

01011-52080

BOLT

12

01643-32060

WASHER

13

201-70-61210

SHAFT

14

203-70-34260

SPACER, 0.5MM

14

202-70-11640

SPACER, 1.0MM

15

203-46-56270

PLATE

16

01010-51230

BOLT

17

01643-31232

WASHER

18

201-70-61240

SHAFT

19

202-70-48460

SPACER, 1.0MM

19

203-70-44430

SPACER, 2.0MM

20

203-46-56270

PLATE

21

01010-51230

BOLT

22

01643-31232

WASHER

23

201-46-62210

SHEET,(FOR DIRT PROTECTION)

24

201-46-62220

SHEET,(FOR DIRT PROTECTION)
