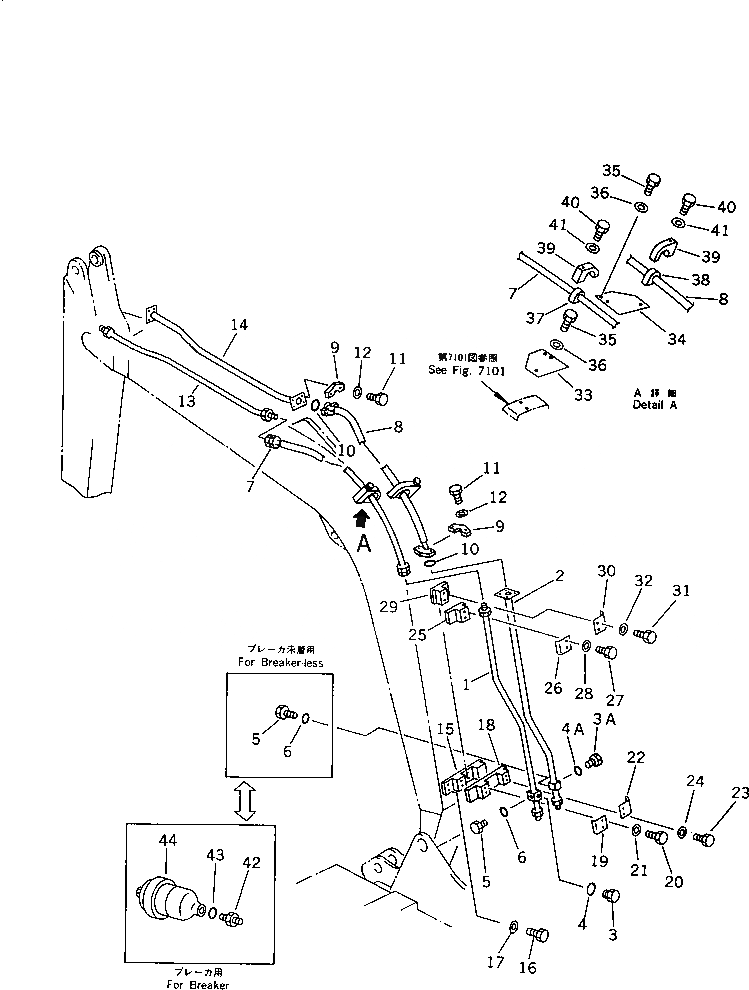

Запчасти Komatsu PC60L-6 ГИДРОЛИНИЯ (ДЛЯ НАВЕСНОЕ ОБОРУД-Е) (С ТОРМОЗ.R ЧАСТИ)(СТРЕЛА)(№87-) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

201-973-6670

TUBE,L.H.

2

201-973-6920

TUBE,R.H.

3

201-973-6930

TUBE

4

07231-30640

FLANGE,SPLIT

5

07000-13025

O-RING

6

07372-21035

BOLT

7

01643-51032

WASHER

8

201-973-6900

VALVE ASS'Y,(SEE FIG.7110)

9

07040-11007

PLUG

10

07002-11023

O-RING

11

07040-12012

PLUG

12

07002-12034

O-RING

13

07096-00419

HOSE

14

07099-00619

HOSE

15

07371-30640

FLANGE,SPLIT

16

07000-13025

O-RING

17

07372-21035

BOLT

18

01643-51032

WASHER

19

201-973-6690

TUBE,L.H.

20

201-973-6680

TUBE,R.H.

21

201-973-6720

SEAT

22

01010-51030

BOLT

23

01643-31032

WASHER

24

201-973-6870

BRACKET

25

203-973-5660

CLAMP

26

01010-51055

BOLT

27

01643-31032

WASHER

28

201-973-6730

CLAMP

29

01010-51060

BOLT

30

01643-31032

WASHER

31

201-973-6730

CLAMP

32

01010-51025

BOLT

33

01643-31032

WASHER

34

203-973-5690

SEAT

35

203-973-5660

CLAMP

36

01010-51065

BOLT

37

01643-31032

WASHER

38

201-973-6740

SEAT

39

201-973-6730

CLAMP

40

01010-51070

BOLT

41

01643-31032

WASHER

42

201-973-6480

PLATE,L.H.

43

201-973-6490

PLATE,R.H.

44

01010-51035

BOLT

45

01643-31032

WASHER

46

203-62-43390

CUSHION

47

203-62-43380

CUSHION

48

203-62-43370

CLAMP

49

01010-51275

BOLT

50

01643-31232

WASHER

51

20D-62-12210

NIPPLE,(FOR BRAKER)

52

07002-12034

O-RING,(FOR BRAKER)

53

2988-01-3630

ACCUMULATOR,(FOR BRAKER)
