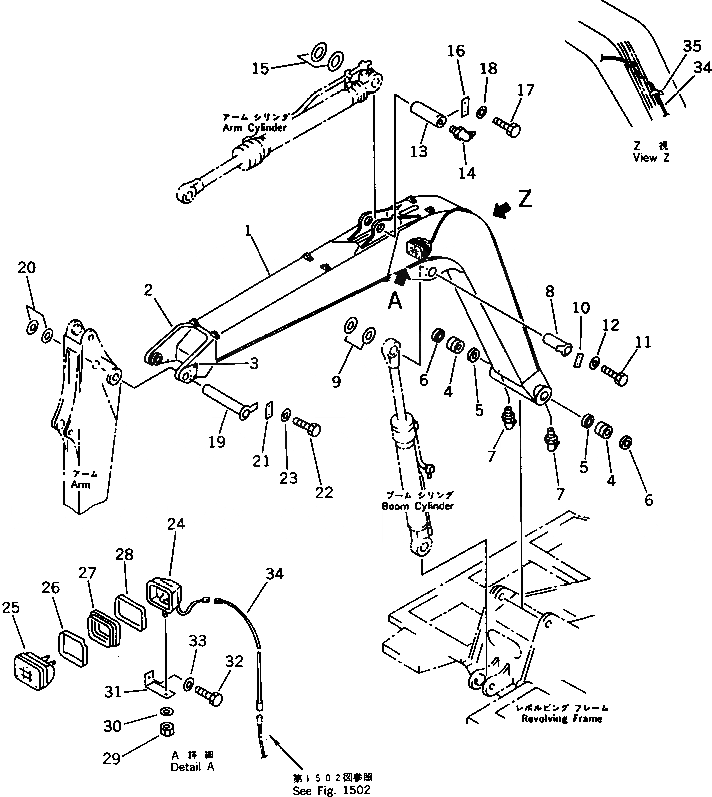

Запчасти Komatsu PC60L-6 СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

201-70-00501

BOOM ASS'Y

|$1

201-70-00500

BOOM ASS'Y

|$2

201-70-00581

BOOM ASS'Y,(WITH HOOK)

|$3

201-70-00580

BOOM ASS'Y,(WITH HOOK)

1

BOOM

1

BOOM

1

BOOM,(WITH HOOK)

1

BOOM,(WITH HOOK)

2

201-70-61131

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

201-70-21182

BUSHING

5

07145-00060

SEAL,DUST

6

07145-00060

SEAL,DUST

7

07020-00900

FITTING,GREASE

8

201-70-61220

PIN

9

202-70-48460

SPACER, 1.0MM

10

203-46-56270

PLATE

11

01010-51230

BOLT

12

01643-31232

WASHER

13

201-70-61230

PIN

14

07020-00675

FITTING,GREASE

15

203-70-24150

SPACER, 1.0MM

16

04082-00212

LOCK

17

01010-51230

BOLT

18

01643-31232

WASHER

19

20X-70-21230

SHAFT

20

203-70-34260

SPACER, 0.5MM

20

202-70-11640

SPACER, 1.0MM

21

203-46-56270

PLATE

22

01010-51230

BOLT

23

01643-31232

WASHER

|$31

203-06-56140

LAMP ASS'Y

24

HOUSING

25

22W-06-12170

BULB

26

203-06-56180

RING

27

22W-06-12290

CUSHION

28

203-06-56190

RING

29

01582-11411

NUT

30

01643-31445

WASHER

31

203-06-56410

BRACKET

32

01010-51430

BOLT

33

01643-31445

WASHER

34

201-06-61360

WIRE

35

203-06-56570

BAND
