Запчасти Komatsu PC60L-5 МОТОР ХОДА (/) ГИДРАВЛИКА

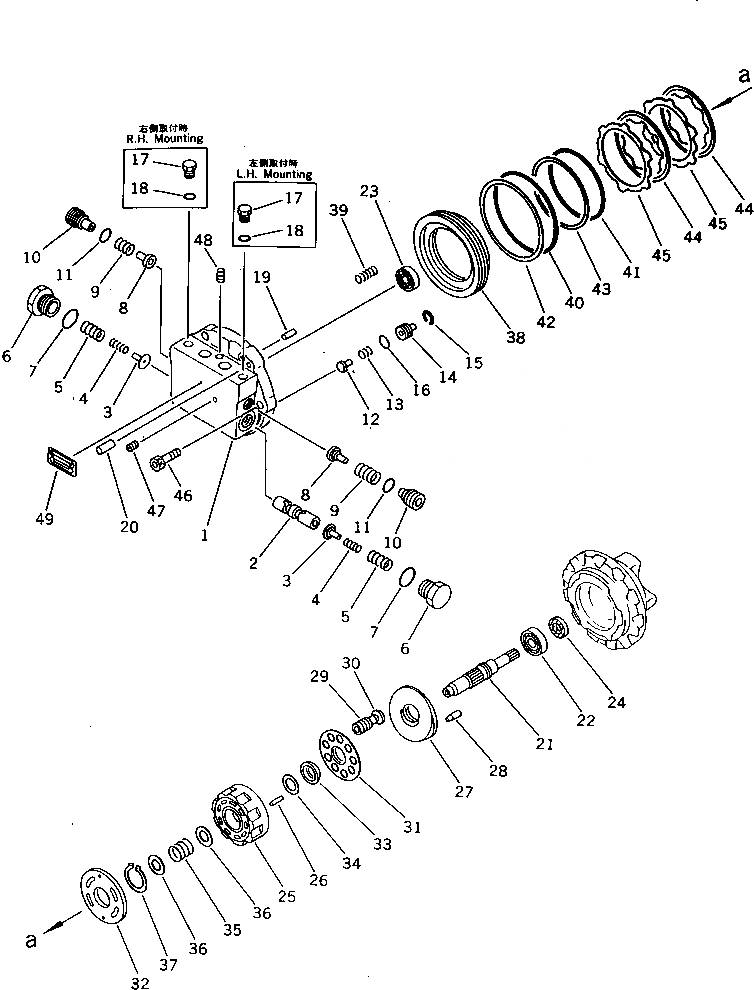

Схема запчастей Komatsu PC60L-5 - МОТОР ХОДА (/) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|$0

201-60-57102

TRAVEL MOTOR ASS'Y

|$1

201-60-57101

TRAVEL MOTOR ASS'Y

|$2

201-60-57100

TRAVEL MOTOR ASS'Y

|$4

TZ910A200000GC

PISTON MOTOR ASS'Y

|$5

TZ880A210100-A

FLANGE KIT

1

FLANGE,REAR

2

SPOOL

3

TZ861A2052-00

STOPPER

4

TZ880A2057-00

SPRING

5

TZ860A2056-00

SPRING

6

TZ860A2051-00

PLUG

7

TZJB2401-P26-9

O-RING (KIT)

8

TZ860A2054-01

VALVE

9

TZ860A2055-01

SPRING

10

TZ860A2053-01

PLUG

11

07000-12016

O-RING (KIT)

12

TZ860A2019-00

VALVE

13

TZ860A2020-01

SPRING

14

TZ860A2018-00

SEAT,VALVE

15

TZ100A2022-00

RING

16

07000-11009

O-RING (KIT)

17

TZ100A2021-00

PLUG

18

07002-02034

O-RING

19

TZJB1354-4-10

PIN,DOWEL

20

TZJB1354-8-25

PIN,DOWEL

21

TZ910A2002-00A

SHAFT

21

TZ910A2002-00

SHAFT

22

TZ880A2029-00

BEARING,BALL

23

06000-06203

BEARING,BALL

24

TZ15Z-22-42-10

SEAL,OIL (KIT)

25

TZ880A2004-00

BLOCK,CYLINDER

26

TZNR025168

ROLLER,NEEDLE

27

TZ850A200301-G

PLATE,SWASH

28

TZ800A2017-00

PIN

|$35

TZ860A2105-01

PISTON KIT

|$36

PISTON SHOE ASS'Y

29

PISTON

30

SHOE,PISTON

31

TZ850A2007-01

PLATE,RETAINER

32

TZ860A2009-01

PLATE,TIMING

33

TZ880A2008-00

BALL,THRUST

34

TZ880A2011-00

WASHER

35

TZ880A2014-00

SPRING

36

TZ880A2010-00

WASHER

37

TZIRTW-42

RING,SNAP

38

TZ880A2012-00

PISTON

39

TZ880A2013-00

SPRING

40

07000-12140

O-RING (KIT)

41

TZJW1516-G28-9

O-RING (KIT)

42

TZSUN-2BG140

RING,BACK-UP

43

TZSUN-2WG28

RING,BACK-UP

44

TZ800A2015-00

PLATE

45

TZ800A2016-00

PLATE

46

01252-31030

BOLT

47

TZGM1-8

PLUG

48

TZMB700-050

PLUG

49

TZ850A0006-00

PLATE, NAME

Выбрано товаров: 57
